EGE 五子棋游戏 (支持双人、人机)

发表于 2025年6月21日作者 xege

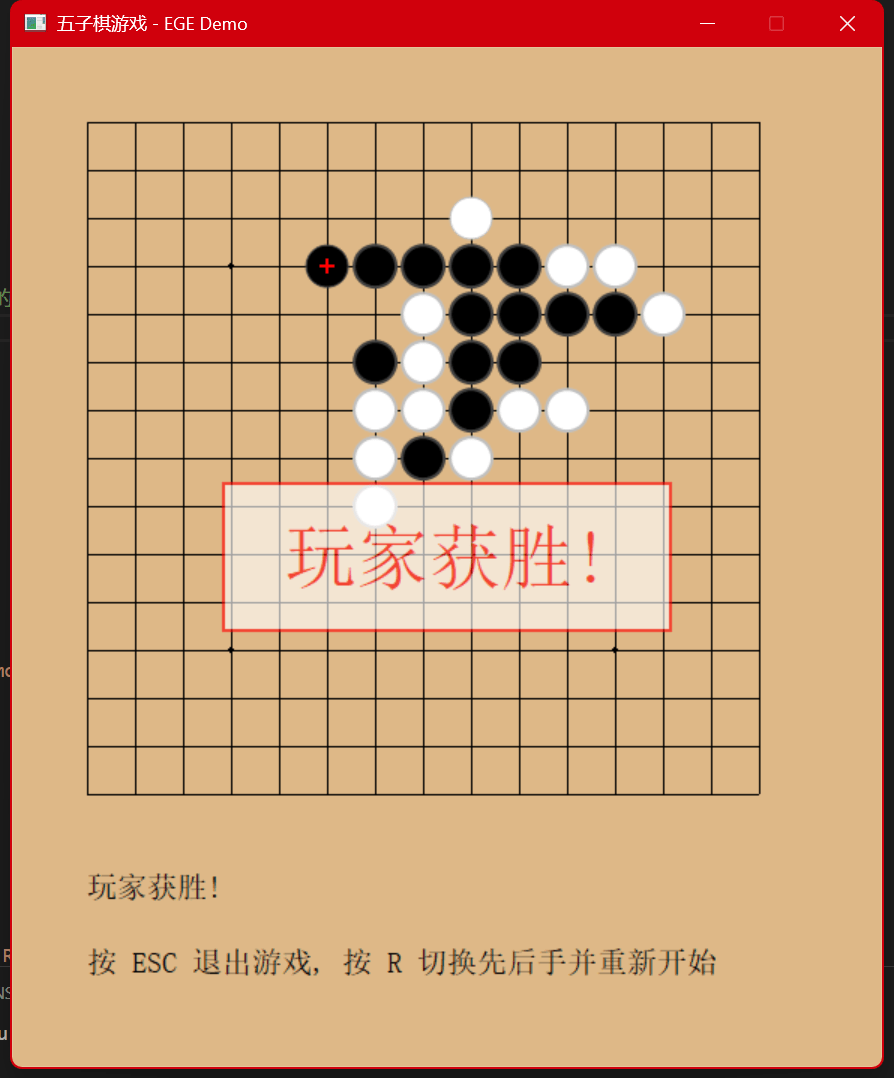

本案例为一个基于 EGE 编写的五子棋游戏，游戏支持简单的人机对战，支持双人对战。使用 MIDI 琴键作为落子音乐。游戏界面：

游戏完整源码就在本文章末尾。 Github 页面: https://github.com/wysaid/xege/pull/276 (源码就在本文章末尾, 此链接仅展示 PR)

游戏简介

五子棋是一种起源于中国的传统棋类游戏，规则简单却变化丰富。游戏使用15×15的棋盘，两名玩家分别执黑子和白子，黑方先行。玩家轮流在棋盘交叉点落子，率先在横、竖、斜任意方向形成连续五子者获胜。

本游戏采用无禁手规则，即不对黑方施加”三三禁手”、”四四禁手”等限制，适合初学者快速上手，也便于程序实现和 AI 对战。

游戏特性

双人对战模式：支持两名玩家在同一设备上对弈
人机对战模式：内置简单 AI，可与电脑对弈
先后手切换：在 AI 模式下可通过 R 键切换先手
音效反馈：黑白棋子落子时有不同音高的音效提示
视觉反馈：最后落子位置会有高亮标记，便于追踪对局进展

EGE 图形库能力应用

本游戏是 EGE 图形库功能的综合展示，主要使用了以下特性：

1. 基础图形绘制

// 绘制棋盘线条
setcolor(ege::BLACK);
setlinestyle(PS_SOLID, 2);
for (int i = 0; i < BOARD_SIZE; i++) {
    int y = BOARD_OFFSET_Y + i * CELL_SIZE;
    line(BOARD_OFFSET_X, y, BOARD_OFFSET_X + (BOARD_SIZE - 1) * CELL_SIZE, y);
}

// 绘制棋盘线条

setcolor(ege::BLACK);

setlinestyle(PS_SOLID, 2);

for (int i = 0; i < BOARD_SIZE; i++) {

int y = BOARD_OFFSET_Y + i * CELL_SIZE;

line(BOARD_OFFSET_X, y, BOARD_OFFSET_X + (BOARD_SIZE - 1) * CELL_SIZE, y);

}

使用 line() 函数绘制棋盘网格，setcolor() 和 setlinestyle() 控制线条样式。

2. 抗锯齿圆形绘制

ege_enable_aa(true);
ege_fillcircle(x, y, CELL_SIZE / 2 - 2);
ege_circle(x, y, CELL_SIZE / 2 - 2);
ege_enable_aa(false);

ege_enable_aa(true);

ege_fillcircle(x, y, CELL_SIZE / 2 - 2);

ege_circle(x, y, CELL_SIZE / 2 - 2);

ege_enable_aa(false);

启用抗锯齿后，使用 ege_fillcircle() 和 ege_circle() 绘制平滑的棋子，视觉效果更加美观。

3. 鼠标交互

while (mousemsg()) {
    mouse_msg msg = getmouse();
    if (msg.is_down() && msg.is_left()) {
        game.handleMouseClick(msg.x, msg.y);
    }
}

while (mousemsg()) {

mouse_msg msg = getmouse();

if (msg.is_down() && msg.is_left()) {

game.handleMouseClick(msg.x, msg.y);

}

通过 mousemsg() 和 getmouse() 捕获鼠标事件，将屏幕坐标转换为棋盘坐标：

bool mouseToBoard(int mouseX, int mouseY, int& row, int& col) {
    int x = mouseX - BOARD_OFFSET_X;
    int y = mouseY - BOARD_OFFSET_Y;
    col = (x + CELL_SIZE / 2) / CELL_SIZE;
    row = (y + CELL_SIZE / 2) / CELL_SIZE;

    // 检查点击是否在交叉点附近
    int actualX = col * CELL_SIZE;
    int actualY = row * CELL_SIZE;
    int dx = x - actualX;
    int dy = y - actualY;

    return (dx * dx + dy * dy <= (CELL_SIZE / 2) * (CELL_SIZE / 2));
}

bool mouseToBoard(int mouseX, int mouseY, int& row, int& col) {

int x = mouseX - BOARD_OFFSET_X;

int y = mouseY - BOARD_OFFSET_Y;

col = (x + CELL_SIZE / 2) / CELL_SIZE;

row = (y + CELL_SIZE / 2) / CELL_SIZE;

// 检查点击是否在交叉点附近

int actualX = col * CELL_SIZE;

int actualY = row * CELL_SIZE;

int dx = x - actualX;

int dy = y - actualY;

return (dx * dx + dy * dy <= (CELL_SIZE / 2) * (CELL_SIZE / 2));

}

这段代码通过距离公式确保只有点击交叉点附近才有效。

4. 键盘输入

if (kbhit()) {
    int key = getch();
    if (key == 27) {           // ESC 退出
        break;
    } else if (key == 'r' || key == 'R') {  // R 重新开始
        game.restartGame();
    } else if (key == 'm' || key == 'M') {  // M 切换模式
        game.toggleMode();
    }
}

if (kbhit()) {

int key = getch();

if (key == 27) { // ESC 退出

break;

} else if (key == 'r' || key == 'R') { // R 重新开始

game.restartGame();

} else if (key == 'm' || key == 'M') { // M 切换模式

game.toggleMode();

}

使用 kbhit() 和 getch() 实现键盘控制。

5. 图像缓存与半透明效果

m_gameEndImage = newimage(bgWidth, bgHeight);
settarget(m_gameEndImage);
// ... 绘制内容 ...
ege_setalpha(0xa0, m_gameEndImage);
settarget(nullptr);

// 显示时使用
putimage_withalpha(nullptr, m_gameEndImage, m_imgX, m_imgY);

m_gameEndImage = newimage(bgWidth, bgHeight);

settarget(m_gameEndImage);

// ... 绘制内容 ...

ege_setalpha(0xa0, m_gameEndImage);

settarget(nullptr);

// 显示时使用

putimage_withalpha(nullptr, m_gameEndImage, m_imgX, m_imgY);

将游戏结束画面预先绘制到图像对象，设置半透明效果，提升性能和视觉体验。

双人对战实现

双人对战模式的实现相对简单，核心是玩家轮流落子：

void makeMove(int row, int col) {
    if (placePiece(row, col, m_currentPlayer)) {
        if (checkWin(row, col, m_currentPlayer)) {
            m_gameState = (m_currentPlayer == BLACK_PIECE) ? BLACK_WIN : WHITE_WIN;
        } else if (isBoardFull()) {
            m_gameState = DRAW;
        } else {
            // 切换玩家
            m_currentPlayer = (m_currentPlayer == BLACK_PIECE) ? WHITE_PIECE : BLACK_PIECE;
        }
    }
}

void makeMove(int row, int col) {

if (placePiece(row, col, m_currentPlayer)) {

if (checkWin(row, col, m_currentPlayer)) {

m_gameState = (m_currentPlayer == BLACK_PIECE) ? BLACK_WIN : WHITE_WIN;

} else if (isBoardFull()) {

m_gameState = DRAW;

} else {

// 切换玩家

m_currentPlayer = (m_currentPlayer == BLACK_PIECE) ? WHITE_PIECE : BLACK_PIECE;

}

每次落子后检查胜负，如果游戏继续则切换当前玩家。胜负判定使用方向搜索算法：

bool checkWin(int row, int col, PieceType piece) {
    // 四个方向：水平、垂直、主对角线、副对角线
    int directions[4][2] = {{0, 1}, {1, 0}, {1, 1}, {1, -1}};

    for (int dir = 0; dir < 4; dir++) {
        int count = 1;
        int dr = directions[dir][0];
        int dc = directions[dir][1];

        // 正反方向统计连续棋子数
        int r = row + dr, c = col + dc;
        while (r >= 0 && r < BOARD_SIZE && c >= 0 && c < BOARD_SIZE
               && m_board[r][c] == piece) {
            count++;
            r += dr;
            c += dc;
        }

        r = row - dr, c = col - dc;
        while (r >= 0 && r < BOARD_SIZE && c >= 0 && c < BOARD_SIZE
               && m_board[r][c] == piece) {
            count++;
            r -= dr;
            c -= dc;
        }

        if (count >= 5) return true;
    }
    return false;
}

bool checkWin(int row, int col, PieceType piece) {

// 四个方向：水平、垂直、主对角线、副对角线

int directions[4][2] = {{0, 1}, {1, 0}, {1, 1}, {1, -1}};

for (int dir = 0; dir < 4; dir++) {

int count = 1;

int dr = directions[dir][0];

int dc = directions[dir][1];

// 正反方向统计连续棋子数

int r = row + dr, c = col + dc;

while (r >= 0 && r < BOARD_SIZE && c >= 0 && c < BOARD_SIZE

&& m_board[r][c] == piece) {

count++;

r += dr;

c += dc;

}

r = row - dr, c = col - dc;

while (r >= 0 && r < BOARD_SIZE && c >= 0 && c < BOARD_SIZE

&& m_board[r][c] == piece) {

count++;

r -= dr;

c -= dc;

}

if (count >= 5) return true;

}

return false;

}

这个算法对每个落子位置检查四个方向，统计连续同色棋子数量。

人机对战 AI 算法

本游戏采用了基于位置评估的启发式算法，虽然不如 Alpha-Beta 剪枝等高级算法强大，但足以提供有趣的对战体验。

AI 决策流程

void aiMove() {
    int bestRow = -1, bestCol = -1;
    int bestScore = -1000;

    // 遍历所有空位，评估每个位置的得分
    for (int i = 0; i < BOARD_SIZE; i++) {
        for (int j = 0; j < BOARD_SIZE; j++) {
            if (m_board[i][j] == EMPTY) {
                int score = evaluatePosition(i, j);
                if (score > bestScore) {
                    bestScore = score;
                    bestRow = i;
                    bestCol = j;
                }
            }
        }
    }

    if (bestRow != -1 && bestCol != -1) {
        makeMove(bestRow, bestCol);
    }
}

void aiMove() {

int bestRow = -1, bestCol = -1;

int bestScore = -1000;

// 遍历所有空位，评估每个位置的得分

for (int i = 0; i < BOARD_SIZE; i++) {

for (int j = 0; j < BOARD_SIZE; j++) {

if (m_board[i][j] == EMPTY) {

int score = evaluatePosition(i, j);

if (score > bestScore) {

bestScore = score;

bestRow = i;

bestCol = j;

}

if (bestRow != -1 && bestCol != -1) {

makeMove(bestRow, bestCol);

}

AI 遍历棋盘所有空位，选择评分最高的位置落子。

位置评估算法

评估函数综合考虑三个因素：

位置价值：靠近中心的位置得分更高

int centerRow = BOARD_SIZE / 2;
int centerCol = BOARD_SIZE / 2;
int distanceFromCenter = abs(row - centerRow) + abs(col - centerCol);
score += (BOARD_SIZE - distanceFromCenter);

int centerRow = BOARD_SIZE / 2;

int centerCol = BOARD_SIZE / 2;

int distanceFromCenter = abs(row - centerRow) + abs(col - centerCol);

score += (BOARD_SIZE - distanceFromCenter);

进攻价值：评估该位置能形成的己方连珠

C++

score += evaluateDirection(row, col, aiPiece) * 10;

1

score += evaluateDirection(row, col, aiPiece) * 10;
防守价值：评估该位置能阻止的对手连珠

C++

score += evaluateDirection(row, col, humanPiece) * 8;

1

score += evaluateDirection(row, col, humanPiece) * 8;

方向评估算法

int evaluateDirection(int row, int col, PieceType piece) {
    int score = 0;
    int directions[4][2] = {{0, 1}, {1, 0}, {1, 1}, {1, -1}};

    for (int dir = 0; dir < 4; dir++) {
        int count = 0;
        bool blocked = false;

        // 正反两个方向统计连续棋子
        // ... 统计逻辑 ...

        // 根据连子数量给分
        if (count >= 4) {
            score += 1000;  // 四连，极其重要
        } else if (count >= 3) {
            score += blocked ? 5 : 50;  // 三连，活三价值更高
        } else if (count >= 2) {
            score += blocked ? 2 : 10;   // 二连
        }
    }
    return score;
}

int evaluateDirection(int row, int col, PieceType piece) {

int score = 0;

int directions[4][2] = {{0, 1}, {1, 0}, {1, 1}, {1, -1}};

for (int dir = 0; dir < 4; dir++) {

int count = 0;

bool blocked = false;

// 正反两个方向统计连续棋子

// ... 统计逻辑 ...

// 根据连子数量给分

if (count >= 4) {

score += 1000; // 四连，极其重要

} else if (count >= 3) {

score += blocked ? 5 : 50; // 三连，活三价值更高

} else if (count >= 2) {

score += blocked ? 2 : 10; // 二连

}

return score;

}

该算法对每个方向统计能形成的连珠数量，连子越多得分越高，活棋（未被封堵）价值更高。

音效系统实现

游戏使用 Windows MIDI API 实现音效，为黑白棋子设计了不同音高的落子音效：

void playPieceSound(PieceType piece) {
    // 设置音色为木琴(Xylophone)，编号13
    DWORD msg = 0xC000 | 13;
    midiOutShortMsg(m_device, msg);

    if (piece == BLACK_PIECE) {
        // 黑子使用较低沉的G4音符(MIDI编号45)
        midiOutShortMsg(m_device, 0x90 | (MIDI_BLACK << 8) | (80 << 16));
    } else if (piece == WHITE_PIECE) {
        // 白子使用较清脆的C5音符(MIDI编号57)
        midiOutShortMsg(m_device, 0x90 | (MIDI_WHITE << 8) | (80 << 16));
    }
}

void playPieceSound(PieceType piece) {

// 设置音色为木琴(Xylophone)，编号13

DWORD msg = 0xC000 | 13;

midiOutShortMsg(m_device, msg);

if (piece == BLACK_PIECE) {

// 黑子使用较低沉的G4音符(MIDI编号45)

midiOutShortMsg(m_device, 0x90 | (MIDI_BLACK << 8) | (80 << 16));

} else if (piece == WHITE_PIECE) {

// 白子使用较清脆的C5音符(MIDI编号57)

midiOutShortMsg(m_device, 0x90 | (MIDI_WHITE << 8) | (80 << 16));

}

黑子使用 G4 音符，白子使用 C5 音符，两者形成完美四度音程，听感舒适且易于区分。音效播放后会在约20帧后自动停止，避免声音延续过长。

游戏操作指南

鼠标左键：点击棋盘交叉点落子
ESC 键：退出游戏
R 键：重新开始游戏（AI模式下会切换先后手）
M 键：切换双人/人机对战模式

在人机对战模式下，玩家可以通过按 R 键来切换先后手，体验执黑或执白的不同策略。

技术亮点总结

坐标转换公式：屏幕坐标到棋盘逻辑坐标的精确转换，使用距离公式确保点击精度
胜负判定算法：四方向扫描，时间复杂度 O(1)，每次只检查落子点周围
AI评估函数：平衡攻守的启发式算法，权重系数经过调优（进攻×10，防守×8）
视觉优化：使用抗锯齿、图像缓存、半透明效果提升渲染质量
跨平台兼容：通过宏定义实现 MSVC 和非 MSVC 编译器的兼容性

这个五子棋游戏虽然规模不大，但麻雀虽小五脏俱全，展示了 EGE 图形库在游戏开发中的实用性和便捷性，是学习图形编程和游戏开发的优秀范例。

完整代码

下面是游戏完整源码，配置好 ege 之后，可以直接玩哦~~

/**
 * @file game_gomoku.cpp
 * @author wysaid (this@xege.org)
 * @brief 传统规则下的五子棋游戏, 附带简单的AI对手
 * @version 0.1
 * @date 2025-06-18
 *
 */

#include "graphics.h"
#include <vector>

/// 是否禁用音效. 如果存在编译问题， 可以把下面这行的值改成 0
#ifdef _MSC_VER
#define ENABLE_SOUNDS 1
#else
// 如果使用非MSVC编译器, 需要手动链接 winmm.lib
// 这里默认禁用音效, 避免非MSVC编译器编译时出错
#define ENABLE_SOUNDS 0
#endif

#if ENABLE_SOUNDS
#include <windows.h>
#include <mmsystem.h>

#pragma comment(lib, "winmm.lib")
#endif

// 文本本地化宏定义
#ifdef _MSC_VER
// MSVC编译器使用中文文案
#define TEXT_WINDOW_TITLE   "五子棋游戏 - EGE Demo"
#define TEXT_CURRENT_PLAYER "当前玩家: %s"
#define TEXT_GAME_MODE      "游戏模式: %s"
#define TEXT_BLACK_PIECE    "黑子"
#define TEXT_WHITE_PIECE    "白子"
#define TEXT_BLACK_WIN      "黑子获胜!"
#define TEXT_WHITE_WIN      "白子获胜!"
#define TEXT_PLAYER_WIN     "玩家获胜!"
#define TEXT_PLAYER_LOSE    "玩家失败!"
#define TEXT_DRAW           "平局!"
#define TEXT_EXIT_HINT      "按 ESC 退出游戏, 按 R 切换先后手并重新开始"
#define TEXT_MODE_AI        "人机对战 (按M切换)"
#define TEXT_MODE_HUMAN     "双人对战 (按M切换)"
#define TEXT_FIRST_PLAYER   "先手: %s"
#define TEXT_PLAYER_HUMAN   "玩家"
#define TEXT_PLAYER_AI      "AI"
#define TEXT_FONT_NAME      "宋体"
#define TEXT_RESTART_MSG    "游戏重新初始化..."
#else
// 非MSVC编译器使用英文文案
#define TEXT_WINDOW_TITLE   "Gomoku Game - EGE Demo"
#define TEXT_CURRENT_PLAYER "Current Player: %s"
#define TEXT_GAME_MODE      "Game Mode: %s"
#define TEXT_BLACK_PIECE    "Black"
#define TEXT_WHITE_PIECE    "White"
#define TEXT_BLACK_WIN      "Black Wins!"
#define TEXT_WHITE_WIN      "White Wins!"
#define TEXT_PLAYER_WIN     "Player Wins!"
#define TEXT_PLAYER_LOSE    "Player Loses!"
#define TEXT_DRAW           "Draw!"
#define TEXT_EXIT_HINT      "Press ESC to Exit, Press R to Switch First Player and Restart"
#define TEXT_MODE_AI        "VS AI (Press M to Switch)"
#define TEXT_MODE_HUMAN     "VS Human (Press M to Switch)"
#define TEXT_FIRST_PLAYER   "First: %s"
#define TEXT_PLAYER_HUMAN   "Human"
#define TEXT_PLAYER_AI      "AI"
#define TEXT_FONT_NAME      "Arial"
#define TEXT_RESTART_MSG    "Game Restarting..."
#endif

// 游戏常量
const int BOARD_SIZE     = 15; // 棋盘大小
const int CELL_SIZE      = 32; // 格子大小
const int BOARD_OFFSET_X = 50; // 棋盘X偏移
const int BOARD_OFFSET_Y = 50; // 棋盘Y偏移
const int WINDOW_WIDTH   = BOARD_OFFSET_X * 2 + BOARD_SIZE * CELL_SIZE;
const int WINDOW_HEIGHT  = BOARD_OFFSET_Y * 2 + BOARD_SIZE * CELL_SIZE + 100; // 额外空间显示信息

// 棋子类型
enum PieceType
{
    EMPTY       = 0,
    BLACK_PIECE = 1,
    WHITE_PIECE = 2
};

// 游戏状态
enum GameState
{
    PLAYING,
    BLACK_WIN,
    WHITE_WIN,
    DRAW
};

// 游戏类
class Gomoku
{
public:
    Gomoku()
    {
        initGame();
#if ENABLE_SOUNDS
        // 打开音频设备
        midiOutOpen(&m_device, m_deviceID, 0, 0, CALLBACK_NULL);
#endif
    }

    // 初始化游戏
    void initGame(bool toggleFirst = false)
    {
        // 清空棋盘
        for (int i = 0; i < BOARD_SIZE; i++) {
            for (int j = 0; j < BOARD_SIZE; j++) {
                m_board[i][j] = EMPTY;
            }
        }

        // 重置最后落子位置
        m_lastRow = -1;
        m_lastCol = -1;

        // 在AI模式下，如果需要轮换先手
        if (m_vsAI && toggleFirst) {
            m_humanFirst = !m_humanFirst;

            if (!m_humanFirst) {
                // AI先手，直接下在中心位置
                placePiece(BOARD_SIZE / 2, BOARD_SIZE / 2, BLACK_PIECE);
            }
        }

        // 根据先手设置确定当前玩家
        if (m_vsAI) {
            m_currentPlayer = m_humanFirst ? BLACK_PIECE : WHITE_PIECE;
        } else {
            m_currentPlayer = BLACK_PIECE; // 双人模式总是黑子先行
        }

        m_gameState = PLAYING;
    }

    // 绘制棋盘
    void drawBoard()
    {
        // 设置背景色为木色
        setbkcolor(EGERGB(222, 184, 135));
        cleardevice();

        // 绘制棋盘线条
        setcolor(ege::BLACK);
        setlinestyle(PS_SOLID, 2);

        // 绘制横线
        for (int i = 0; i < BOARD_SIZE; i++) {
            int y = BOARD_OFFSET_Y + i * CELL_SIZE;
            line(BOARD_OFFSET_X, y, BOARD_OFFSET_X + (BOARD_SIZE - 1) * CELL_SIZE, y);
        }

        // 绘制竖线
        for (int j = 0; j < BOARD_SIZE; j++) {
            int x = BOARD_OFFSET_X + j * CELL_SIZE;
            line(x, BOARD_OFFSET_Y, x, BOARD_OFFSET_Y + (BOARD_SIZE - 1) * CELL_SIZE);
        }

        // 绘制天元和星位
        setfillcolor(ege::BLACK);
        int center = BOARD_SIZE / 2;
        // 天元
        fillcircle(BOARD_OFFSET_X + center * CELL_SIZE, BOARD_OFFSET_Y + center * CELL_SIZE, 3); // 四个星位
        int starPos = 3;
        fillcircle(BOARD_OFFSET_X + starPos * CELL_SIZE, BOARD_OFFSET_Y + starPos * CELL_SIZE, 2);
        fillcircle(BOARD_OFFSET_X + (BOARD_SIZE - 1 - starPos) * CELL_SIZE, BOARD_OFFSET_Y + starPos * CELL_SIZE, 2);
        fillcircle(BOARD_OFFSET_X + starPos * CELL_SIZE, BOARD_OFFSET_Y + (BOARD_SIZE - 1 - starPos) * CELL_SIZE, 2);
        fillcircle(BOARD_OFFSET_X + (BOARD_SIZE - 1 - starPos) * CELL_SIZE,
            BOARD_OFFSET_Y + (BOARD_SIZE - 1 - starPos) * CELL_SIZE, 2);
    }

    // 绘制棋子
    void drawPieces()
    {
        ege_enable_aa(true);
        for (int i = 0; i < BOARD_SIZE; i++) {
            for (int j = 0; j < BOARD_SIZE; j++) {
                if (m_board[i][j] != EMPTY) {
                    int x = BOARD_OFFSET_X + j * CELL_SIZE;
                    int y = BOARD_OFFSET_Y + i * CELL_SIZE;

                    // 判断是否为最后一颗落子
                    bool isLastPiece = (i == m_lastRow && j == m_lastCol);

                    if (m_board[i][j] == BLACK_PIECE) {
                        setfillcolor(ege::BLACK);
                        setcolor(EGERGB(64, 64, 64));
                    } else {
                        setfillcolor(ege::WHITE);
                        setcolor(EGERGB(192, 192, 192));
                    }

                    // 使用抗锯齿的EGE绘制函数，提供更平滑的圆形效果
                    ege_fillcircle(x, y, CELL_SIZE / 2 - 2);
                    ege_circle(x, y, CELL_SIZE / 2 - 2);

                    // 如果是最后一颗落子，绘制高亮标记
                    if (isLastPiece) {
                        // 绘制红色小十字
                        setcolor(EGERGB(255, 0, 0));
                        setlinewidth(2);
                        line(x - CELL_SIZE / 6, y, x + CELL_SIZE / 6, y);
                        line(x, y - CELL_SIZE / 6, x, y + CELL_SIZE / 6);
                    }
                }
            }
        }
        ege_enable_aa(false);
    }

    // 绘制游戏信息
    void drawInfo()
    {
        setcolor(ege::BLACK);
        setfont(20, 0, TEXT_FONT_NAME);

        int infoY = BOARD_OFFSET_Y + BOARD_SIZE * CELL_SIZE + 20;

        if (m_gameState == PLAYING) {
            xyprintf(BOARD_OFFSET_X, infoY, TEXT_CURRENT_PLAYER,
                m_currentPlayer == BLACK_PIECE ? TEXT_BLACK_PIECE : TEXT_WHITE_PIECE);
            xyprintf(BOARD_OFFSET_X, infoY + 25, TEXT_GAME_MODE, m_vsAI ? TEXT_MODE_AI : TEXT_MODE_HUMAN);

            // 在AI模式下显示先手信息
            if (m_vsAI) {
                xyprintf(
                    BOARD_OFFSET_X, infoY + 50, TEXT_FIRST_PLAYER, m_humanFirst ? TEXT_PLAYER_HUMAN : TEXT_PLAYER_AI);
            }
        } else {
            const char* winner = getWinnerText();
            xyprintf(BOARD_OFFSET_X, infoY, winner);
        }

        xyprintf(BOARD_OFFSET_X, infoY + (m_vsAI && m_gameState == PLAYING ? 75 : 50), TEXT_EXIT_HINT);
    }

    void drawGameOver()
    {
        if (m_gameState == PLAYING) {
            if (m_gameEndImage != nullptr) {
                // 清理缓存， 降低内存占用.
                delimage(m_gameEndImage);
                m_gameEndImage = nullptr;
            }
            return; // 游戏未结束，不绘制
        }

        if (m_gameEndImage == nullptr) {
            int bgWidth  = 300;
            int bgHeight = 100;

            m_gameEndImage = newimage(bgWidth, bgHeight);

            settarget(m_gameEndImage);

            // 绘制半透明背景
            setfillcolor(0xffffffff);
            setfillstyle(SOLID_FILL, 0xffffffff);
            // 绘制背景矩形
            setlinewidth(3);
            setbkmode(TRANSPARENT);

            // 设置大号字体
            setcolor(EGERGBA(255, 0, 0, 255)); // 红色文字
            setfont(48, 0, TEXT_FONT_NAME);

            // 根据游戏状态确定显示文本
            const char* gameOverText = getWinnerText();

            fillrect(0, 0, bgWidth, bgHeight);
            rectangle(0, 0, bgWidth, bgHeight); // 计算文本居中位置
            int textWidth  = textwidth(gameOverText);
            int textHeight = textheight(gameOverText);
            int textX      = (bgWidth - textWidth) / 2;
            int textY      = (bgHeight - textHeight) / 2;

            // 绘制游戏结束文本
            outtextxy(textX, textY, gameOverText);
            m_imgX = (WINDOW_WIDTH - bgWidth) / 2;
            m_imgY = (WINDOW_HEIGHT - bgHeight) / 2;

            ege_setalpha(0xa0, m_gameEndImage); // 设置半透明效果
            settarget(nullptr);                 // 结束绘制到临时图像
        }

        // putimage(m_imgX, m_imgY, m_gameEndImage);
        putimage_withalpha(nullptr, m_gameEndImage, m_imgX, m_imgY);
    }

    // 获取获胜者文案
    const char* getWinnerText()
    {
        if (m_gameState == DRAW) {
            return TEXT_DRAW;
        }

        if (m_vsAI) {
            // AI模式下判断玩家是否获胜
            bool playerWins = false;
            if (m_humanFirst && m_gameState == BLACK_WIN) {
                playerWins = true; // 玩家是黑子且黑子获胜
            } else if (!m_humanFirst && m_gameState == WHITE_WIN) {
                playerWins = true; // 玩家是白子且白子获胜
            }
            return playerWins ? TEXT_PLAYER_WIN : TEXT_PLAYER_LOSE;
        } else {
            // 双人模式下使用传统文案
            if (m_gameState == BLACK_WIN) {
                return TEXT_BLACK_WIN;
            } else if (m_gameState == WHITE_WIN) {
                return TEXT_WHITE_WIN;
            }
        }

        return TEXT_DRAW;
    }

    // 鼠标点击转换为棋盘坐标
    bool mouseToBoard(int mouseX, int mouseY, int& row, int& col)
    {
        int x = mouseX - BOARD_OFFSET_X;
        int y = mouseY - BOARD_OFFSET_Y;

        // 计算最近的交叉点
        col = (x + CELL_SIZE / 2) / CELL_SIZE;
        row = (y + CELL_SIZE / 2) / CELL_SIZE;

        // 检查是否在棋盘范围内
        if (row >= 0 && row < BOARD_SIZE && col >= 0 && col < BOARD_SIZE) {
            // 检查点击是否在交叉点附近
            int actualX = col * CELL_SIZE;
            int actualY = row * CELL_SIZE;
            int dx      = x - actualX;
            int dy      = y - actualY;

            return (dx * dx + dy * dy <= (CELL_SIZE / 2) * (CELL_SIZE / 2));
        }

        return false;
    }

    // 下棋
    bool placePiece(int row, int col, PieceType piece)
    {
        if (row < 0 || row >= BOARD_SIZE || col < 0 || col >= BOARD_SIZE) {
            return false;
        }

        if (m_board[row][col] != EMPTY) {
            return false;
        }

        m_board[row][col] = piece;

        // 更新最后落子位置
        m_lastRow = row;
        m_lastCol = col;

        return true;
    }

    // 检查是否五子连珠
    bool checkWin(int row, int col, PieceType piece)
    {
        // 四个方向：水平、垂直、主对角线、副对角线
        int directions[4][2] = {{0, 1}, {1, 0}, {1, 1}, {1, -1}};

        for (int dir = 0; dir < 4; dir++) {
            int count = 1; // 包含当前棋子
            int dr    = directions[dir][0];
            int dc    = directions[dir][1];

            // 正方向统计
            int r = row + dr, c = col + dc;
            while (r >= 0 && r < BOARD_SIZE && c >= 0 && c < BOARD_SIZE && m_board[r][c] == piece) {
                count++;
                r += dr;
                c += dc;
            }

            // 反方向统计
            r = row - dr, c = col - dc;
            while (r >= 0 && r < BOARD_SIZE && c >= 0 && c < BOARD_SIZE && m_board[r][c] == piece) {
                count++;
                r -= dr;
                c -= dc;
            }

            if (count >= 5) {
                return true;
            }
        }

        return false;
    }

    // 检查棋盘是否已满
    bool isBoardFull()
    {
        for (int i = 0; i < BOARD_SIZE; i++) {
            for (int j = 0; j < BOARD_SIZE; j++) {
                if (m_board[i][j] == EMPTY) {
                    return false;
                }
            }
        }
        return true;
    }

    // 简单AI：寻找最佳落子位置
    void aiMove()
    {
        if (m_gameState != PLAYING) {
            return;
        }

        // 检查是否轮到AI
        bool isAITurn = (m_humanFirst && m_currentPlayer == WHITE_PIECE) ||
            (!m_humanFirst && m_currentPlayer == BLACK_PIECE);
        if (!isAITurn) {
            return;
        }

        int bestRow = -1, bestCol = -1;
        int bestScore = -1000;

        // 遍历所有空位，评估每个位置的得分
        for (int i = 0; i < BOARD_SIZE; i++) {
            for (int j = 0; j < BOARD_SIZE; j++) {
                if (m_board[i][j] == EMPTY) {
                    int score = evaluatePosition(i, j);
                    if (score > bestScore) {
                        bestScore = score;
                        bestRow   = i;
                        bestCol   = j;
                    }
                }
            }
        }

        // 如果找到了合适的位置，就下棋
        if (bestRow != -1 && bestCol != -1) {
            makeMove(bestRow, bestCol);
        }
    }

    // 评估位置得分
    int evaluatePosition(int row, int col)
    {
        int score = 0;

        // 基础得分：靠近中心的位置更好
        int centerRow           = BOARD_SIZE / 2;
        int centerCol           = BOARD_SIZE / 2;
        int distanceFromCenter  = abs(row - centerRow) + abs(col - centerCol);
        score                  += (BOARD_SIZE - distanceFromCenter);

        // 获取AI的棋子类型
        PieceType aiPiece    = m_humanFirst ? WHITE_PIECE : BLACK_PIECE;
        PieceType humanPiece = m_humanFirst ? BLACK_PIECE : WHITE_PIECE;

        // 攻击得分：评估AI能形成的连珠
        score += evaluateDirection(row, col, aiPiece) * 10;

        // 防守得分：阻止玩家形成连珠
        score += evaluateDirection(row, col, humanPiece) * 8;

        return score;
    }

    // 评估方向得分
    int evaluateDirection(int row, int col, PieceType piece)
    {
        int score            = 0;
        int directions[4][2] = {{0, 1}, {1, 0}, {1, 1}, {1, -1}};

        for (int dir = 0; dir < 4; dir++) {
            int dr = directions[dir][0];
            int dc = directions[dir][1];

            // 统计连续的同色棋子
            int  count   = 0;
            bool blocked = false;

            // 正方向
            int r = row + dr, c = col + dc;
            while (r >= 0 && r < BOARD_SIZE && c >= 0 && c < BOARD_SIZE) {
                if (m_board[r][c] == piece) {
                    count++;
                } else if (m_board[r][c] != EMPTY) {
                    blocked = true;
                    break;
                } else {
                    break;
                }
                r += dr;
                c += dc;
            }

            // 反方向
            r = row - dr, c = col - dc;
            while (r >= 0 && r < BOARD_SIZE && c >= 0 && c < BOARD_SIZE) {
                if (m_board[r][c] == piece) {
                    count++;
                } else if (m_board[r][c] != EMPTY) {
                    if (!blocked) {
                        blocked = true;
                    }
                    break;
                } else {
                    break;
                }
                r -= dr;
                c -= dc;
            }

            // 根据连子数量和是否被阻挡给分
            if (count >= 4) {
                score += 1000; // 四连，非常重要
            } else if (count >= 3) {
                score += blocked ? 5 : 50;
            } else if (count >= 2) {
                score += blocked ? 2 : 10;
            } else if (count >= 1) {
                score += blocked ? 1 : 3;
            }
        }

        return score;
    }

    // 执行移动
    void makeMove(int row, int col)
    {
        if (placePiece(row, col, m_currentPlayer)) {
            if (checkWin(row, col, m_currentPlayer)) {
                m_gameState = (m_currentPlayer == BLACK_PIECE) ? BLACK_WIN : WHITE_WIN;
            } else if (isBoardFull()) {
                m_gameState = DRAW;
            } else {
                // 切换玩家
                m_currentPlayer = (m_currentPlayer == BLACK_PIECE) ? WHITE_PIECE : BLACK_PIECE;
            }
        }

        playPieceSound(m_currentPlayer); // 播放下棋音效
    }

    // 处理鼠标点击
    void handleMouseClick(int mouseX, int mouseY)
    {
        if (m_gameState != PLAYING) {
            return;
        }

        // 如果是AI回合，忽略鼠标点击
        if (m_vsAI &&
            ((m_humanFirst && m_currentPlayer == WHITE_PIECE) || (!m_humanFirst && m_currentPlayer == BLACK_PIECE)))
        {
            return;
        }

        int row, col;
        if (mouseToBoard(mouseX, mouseY, row, col)) {
            makeMove(row, col);
        }
    }

    // 获取当前游戏状态
    GameState getGameState() const { return m_gameState; }

    // 获取当前玩家
    PieceType getCurrentPlayer() const { return m_currentPlayer; }

    // 是否为AI模式
    bool isVsAI() const { return m_vsAI; }

    // 切换游戏模式
    void toggleMode()
    {
        m_vsAI = !m_vsAI;
        if (m_vsAI) {
            m_humanFirst = true;
        }
        initGame();
    }

    // 重新开始游戏（在AI模式下轮换先手）
    void restartGame()
    {
        if (m_vsAI) {
            initGame(true); // 轮换先手
        } else {
            initGame(); // 不轮换先手
        }
    }

    enum // MIDI音符编号定义
    {
        MIDI_BLACK = 45,
        MIDI_WHITE = 57,
    };

    // 播放声音
    void playPieceSound(PieceType piece)
    {
#if ENABLE_SOUNDS
        if (m_device == nullptr) {
            return;
        }
        // 设置音色为木琴(Xylophone)，音色编号13，更符合棋子落盘的感觉
        DWORD msg = 0xC000 | 13; // 0xC0 是更改乐器的控制命令，13 是木琴的乐器号
        midiOutShortMsg(m_device, msg);

        if (m_lastSound != 0) {
            // 如果上一个音符还在播放，先停止它
            midiOutShortMsg(m_device, 0x80 | (m_lastSound << 8)); // 0x80是音符关闭命令
        }

        // 播放黑子下棋音效 - 使用较低沉的G4音符
        if (piece == BLACK_PIECE) {
            // 0x90是音符开启命令，80是适中的音量(比127更柔和)
            midiOutShortMsg(m_device, 0x90 | (MIDI_BLACK << 8) | (80 << 16));
            m_lastSound = MIDI_BLACK; // 记录上一个音符
        } else if (piece == WHITE_PIECE) {
            // 播放白子下棋音效 - 使用较清脆的C5音符，与G4形成完美四度音程
            midiOutShortMsg(m_device, 0x90 | (MIDI_WHITE << 8) | (80 << 16));
            m_lastSound = MIDI_WHITE; // 记录上一个音符
        }
        m_soundTimer = 20; // 音效持续20帧
#endif
    }

    void updatePieceSound()
    {
#if ENABLE_SOUNDS
        if (m_soundTimer <= 0 || m_device == nullptr) {
            return;
        }
        --m_soundTimer;
        if (m_soundTimer == 0 && m_lastSound != 0) {
            // 停止上一个音符
            midiOutShortMsg(m_device, 0x80 | (m_lastSound << 8)); // 0x80是音符关闭命令
            m_lastSound = 0;                                      // 重置上一个音符
        }
#endif
    }

private:
    int       m_board[BOARD_SIZE][BOARD_SIZE]; // 棋盘数组
    PIMAGE    m_gameEndImage{};                // 用于临时缓存绘制
    int       m_imgX{}, m_imgY{};              // 用于结束动画
    PieceType m_currentPlayer{};               // 当前玩家
    GameState m_gameState{};                   // 游戏状态
    bool      m_vsAI       = true;             // 是否对战AI
    bool      m_humanFirst = true;             // AI模式下是否玩家先手

    // 最后落子位置记录
    int m_lastRow = -1; // 最后落子的行位置
    int m_lastCol = -1; // 最后落子的列位置

#if ENABLE_SOUNDS
    /// 音频相关
    HMIDIOUT m_device{};       // MIDI输出设备句柄
    UINT     m_deviceID   = 0; // 使用默认设备
    int      m_soundTimer = 0; // 音效倒计时, 到0时停止
    DWORD    m_lastSound{};    // 上一个音符
#endif
};

int main()
{
    // 初始化图形窗口
    initgraph(WINDOW_WIDTH, WINDOW_HEIGHT, INIT_RENDERMANUAL);
    setrendermode(RENDER_MANUAL);
    setcaption(TEXT_WINDOW_TITLE);

    Gomoku game;

    // 游戏主循环
    while (is_run()) {
        // 绘制游戏画面
        game.drawBoard();
        game.drawPieces();
        game.drawInfo();
        game.updatePieceSound(); // 更新音效状态

        GameState state = game.getGameState();
        if (state == PLAYING) {
            // AI移动（如果是AI回合）
            if (game.isVsAI()) {
                game.aiMove();
            }
        } else {
            game.drawGameOver();
        }

        // 处理鼠标消息
        while (mousemsg()) {
            mouse_msg msg = getmouse();
            if (msg.is_down() && msg.is_left()) {
                game.handleMouseClick(msg.x, msg.y);
            }
        }

        // 处理键盘消息
        if (kbhit()) {
            int key = getch();
            if (key == 27) { // ESC键退出
                break;
            } else if (key == 'r' || key == 'R') { // R键重新开始
                cleardevice(0);
                /// 打印重新初始化消息，提醒玩家游戏重开了
                setcolor(EGERGB(255, 0, 0));
                setfont(50, 0, TEXT_FONT_NAME);
                xyprintf(50, WINDOW_HEIGHT / 2, TEXT_RESTART_MSG);
                Sleep(500); // 稍等一会, 让玩家感知到游戏重开了.
                game.restartGame();
            } else if (key == 'm' || key == 'M') { // M键切换模式
                game.toggleMode();
            }
        }

        delay_fps(60);
    }

    closegraph();
    return 0;
}

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

177

178

179

180

181

182

183

184

185

186

187

188

189

190

191

192

193

194

195

196

197

198

199

200

201

202

203

204

205

206

207

208

209

210

211

212

213

214

215

216

217

218

219

220

221

222

223

224

225

226

227

228

229

230

231

232

233

234

235

236

237

238

239

240

241

242

243

244

245

246

247

248

249

250

251

252

253

254

255

256

257

258

259

260

261

262

263

264

265

266

267

268

269

270

271

272

273

274

275

276

277

278

279

280

281

282

283

284

285

286

287

288

289

290

291

292

293

294

295

296

297

298

299

300

301

302

303

304

305

306

307

308

309

310

311

312

313

314

315

316

317

318

319

320

321

322

323

324

325

326

327

328

329

330

331

332

333

334

335

336

337

338

339

340

341

342

343

344

345

346

347

348

349

350

351

352

353

354

355

356

357

358

359

360

361

362

363

364

365

366

367

368

369

370

371

372

373

374

375

376

377

378

379

380

381

382

383

384

385

386

387

388

389

390

391

392

393

394

395

396

397

398

399

400

401

402

403

404

405

406

407

408

409

410

411

412

413

414

415

416

417

418

419

420

421

422

423

424

425

426

427

428

429

430

431

432

433

434

435

436

437

438

439

440

441

442

443

444

445

446

447

448

449

450

451

452

453

454

455

456

457

458

459

460

461

462

463

464

465

466

467

468

469

470

471

472

473

474

475

476

477

478

479

480

481

482

483

484

485

486

487

488

489

490

491

492

493

494

495

496

497

498

499

500

501

502

503

504

505

506

507

508

509

510

511

512

513

514

515

516

517

518

519

520

521

522

523

524

525

526

527

528

529

530

531

532

533

534

535

536

537

538

539

540

541

542

543

544

545

546

547

548

549

550

551

552

553

554

555

556

557

558

559

560

561

562

563

564

565

566

567

568

569

570

571

572

573

574

575

576

577

578

579

580

581

582

583

584

585

586

587

588

589

590

591

592

593

594

595

596

597

598

599

600

601

602

603

604

605

606

607

608

609

610

611

612

613

614

615

616

617

618

619

620

621

622

623

624

625

626

627

628

629

630

631

632

633

634

635

636

637

638

639

640

641

642

643

644

645

646

647

648

649

650

651

652

653

654

655

656

657

658

659

660

661

662

663

664

665

666

667

668

669

670

671

672

673

674

675

676

677

678

679

680

681

682

683

684

685

686

687

688

689

690

691

692

693

694

695

696

697

698

699

700

701

702

703

704

705

706

707

708

709

710

711

712

713

714

715

716

717

718

719

720

721

722

723

724

725

726

727

728

729

730

731

732

733

734

735

736

737

/**

* @file game_gomoku.cpp

* @author wysaid (this@xege.org)

* @brief 传统规则下的五子棋游戏, 附带简单的AI对手

* @version 0.1

* @date 2025-06-18

#include "graphics.h"

#include <vector>

/// 是否禁用音效. 如果存在编译问题，可以把下面这行的值改成 0

#ifdef _MSC_VER

#define ENABLE_SOUNDS 1

#else

// 如果使用非MSVC编译器, 需要手动链接 winmm.lib

// 这里默认禁用音效, 避免非MSVC编译器编译时出错

#define ENABLE_SOUNDS 0

#endif

#if ENABLE_SOUNDS

#include <windows.h>

#include <mmsystem.h>

#pragma comment(lib, "winmm.lib")

#endif

// 文本本地化宏定义

#ifdef _MSC_VER

// MSVC编译器使用中文文案

#define TEXT_WINDOW_TITLE "五子棋游戏 - EGE Demo"

#define TEXT_CURRENT_PLAYER "当前玩家: %s"

#define TEXT_GAME_MODE "游戏模式: %s"

#define TEXT_BLACK_PIECE "黑子"

#define TEXT_WHITE_PIECE "白子"

#define TEXT_BLACK_WIN "黑子获胜!"

#define TEXT_WHITE_WIN "白子获胜!"

#define TEXT_PLAYER_WIN "玩家获胜!"

#define TEXT_PLAYER_LOSE "玩家失败!"

#define TEXT_DRAW "平局!"

#define TEXT_EXIT_HINT "按 ESC 退出游戏, 按 R 切换先后手并重新开始"

#define TEXT_MODE_AI "人机对战 (按M切换)"

#define TEXT_MODE_HUMAN "双人对战 (按M切换)"

#define TEXT_FIRST_PLAYER "先手: %s"

#define TEXT_PLAYER_HUMAN "玩家"

#define TEXT_PLAYER_AI "AI"

#define TEXT_FONT_NAME "宋体"

#define TEXT_RESTART_MSG "游戏重新初始化..."

#else

// 非MSVC编译器使用英文文案

#define TEXT_WINDOW_TITLE "Gomoku Game - EGE Demo"

#define TEXT_CURRENT_PLAYER "Current Player: %s"

#define TEXT_GAME_MODE "Game Mode: %s"

#define TEXT_BLACK_PIECE "Black"

#define TEXT_WHITE_PIECE "White"

#define TEXT_BLACK_WIN "Black Wins!"

#define TEXT_WHITE_WIN "White Wins!"

#define TEXT_PLAYER_WIN "Player Wins!"

#define TEXT_PLAYER_LOSE "Player Loses!"

#define TEXT_DRAW "Draw!"

#define TEXT_EXIT_HINT "Press ESC to Exit, Press R to Switch First Player and Restart"

#define TEXT_MODE_AI "VS AI (Press M to Switch)"

#define TEXT_MODE_HUMAN "VS Human (Press M to Switch)"

#define TEXT_FIRST_PLAYER "First: %s"

#define TEXT_PLAYER_HUMAN "Human"

#define TEXT_PLAYER_AI "AI"

#define TEXT_FONT_NAME "Arial"

#define TEXT_RESTART_MSG "Game Restarting..."

#endif

// 游戏常量

const int BOARD_SIZE = 15; // 棋盘大小

const int CELL_SIZE = 32; // 格子大小

const int BOARD_OFFSET_X = 50; // 棋盘X偏移

const int BOARD_OFFSET_Y = 50; // 棋盘Y偏移

const int WINDOW_WIDTH = BOARD_OFFSET_X * 2 + BOARD_SIZE * CELL_SIZE;

const int WINDOW_HEIGHT = BOARD_OFFSET_Y * 2 + BOARD_SIZE * CELL_SIZE + 100; // 额外空间显示信息

// 棋子类型

enum PieceType

{

EMPTY = 0,

BLACK_PIECE = 1,

WHITE_PIECE = 2

};

// 游戏状态

enum GameState

{

PLAYING,

BLACK_WIN,

WHITE_WIN,

DRAW

};

// 游戏类

class Gomoku

{

public:

Gomoku()

{

initGame();

#if ENABLE_SOUNDS

// 打开音频设备

midiOutOpen(&m_device, m_deviceID, 0, 0, CALLBACK_NULL);

#endif

}

// 初始化游戏

void initGame(bool toggleFirst = false)

{

// 清空棋盘

for (int i = 0; i < BOARD_SIZE; i++) {

for (int j = 0; j < BOARD_SIZE; j++) {

m_board[i][j] = EMPTY;

}

// 重置最后落子位置

m_lastRow = -1;

m_lastCol = -1;

// 在AI模式下，如果需要轮换先手

if (m_vsAI && toggleFirst) {

m_humanFirst = !m_humanFirst;

if (!m_humanFirst) {

// AI先手，直接下在中心位置

placePiece(BOARD_SIZE / 2, BOARD_SIZE / 2, BLACK_PIECE);

}

// 根据先手设置确定当前玩家

if (m_vsAI) {

m_currentPlayer = m_humanFirst ? BLACK_PIECE : WHITE_PIECE;

} else {

m_currentPlayer = BLACK_PIECE; // 双人模式总是黑子先行

}

m_gameState = PLAYING;

}

// 绘制棋盘

void drawBoard()

{

// 设置背景色为木色

setbkcolor(EGERGB(222, 184, 135));

cleardevice();

// 绘制棋盘线条

setcolor(ege::BLACK);

setlinestyle(PS_SOLID, 2);

// 绘制横线

for (int i = 0; i < BOARD_SIZE; i++) {

int y = BOARD_OFFSET_Y + i * CELL_SIZE;

line(BOARD_OFFSET_X, y, BOARD_OFFSET_X + (BOARD_SIZE - 1) * CELL_SIZE, y);

}

// 绘制竖线

for (int j = 0; j < BOARD_SIZE; j++) {

int x = BOARD_OFFSET_X + j * CELL_SIZE;

line(x, BOARD_OFFSET_Y, x, BOARD_OFFSET_Y + (BOARD_SIZE - 1) * CELL_SIZE);

}

// 绘制天元和星位

setfillcolor(ege::BLACK);

int center = BOARD_SIZE / 2;

// 天元

fillcircle(BOARD_OFFSET_X + center * CELL_SIZE, BOARD_OFFSET_Y + center * CELL_SIZE, 3); // 四个星位

int starPos = 3;

fillcircle(BOARD_OFFSET_X + starPos * CELL_SIZE, BOARD_OFFSET_Y + starPos * CELL_SIZE, 2);

fillcircle(BOARD_OFFSET_X + (BOARD_SIZE - 1 - starPos) * CELL_SIZE, BOARD_OFFSET_Y + starPos * CELL_SIZE, 2);

fillcircle(BOARD_OFFSET_X + starPos * CELL_SIZE, BOARD_OFFSET_Y + (BOARD_SIZE - 1 - starPos) * CELL_SIZE, 2);

fillcircle(BOARD_OFFSET_X + (BOARD_SIZE - 1 - starPos) * CELL_SIZE,

BOARD_OFFSET_Y + (BOARD_SIZE - 1 - starPos) * CELL_SIZE, 2);

}

// 绘制棋子

void drawPieces()

{

ege_enable_aa(true);

for (int i = 0; i < BOARD_SIZE; i++) {

for (int j = 0; j < BOARD_SIZE; j++) {

if (m_board[i][j] != EMPTY) {

int x = BOARD_OFFSET_X + j * CELL_SIZE;

int y = BOARD_OFFSET_Y + i * CELL_SIZE;

// 判断是否为最后一颗落子

bool isLastPiece = (i == m_lastRow && j == m_lastCol);

if (m_board[i][j] == BLACK_PIECE) {

setfillcolor(ege::BLACK);

setcolor(EGERGB(64, 64, 64));

} else {

setfillcolor(ege::WHITE);

setcolor(EGERGB(192, 192, 192));

}

// 使用抗锯齿的EGE绘制函数，提供更平滑的圆形效果

ege_fillcircle(x, y, CELL_SIZE / 2 - 2);

ege_circle(x, y, CELL_SIZE / 2 - 2);

// 如果是最后一颗落子，绘制高亮标记

if (isLastPiece) {

// 绘制红色小十字

setcolor(EGERGB(255, 0, 0));

setlinewidth(2);

line(x - CELL_SIZE / 6, y, x + CELL_SIZE / 6, y);

line(x, y - CELL_SIZE / 6, x, y + CELL_SIZE / 6);

}

ege_enable_aa(false);

}

// 绘制游戏信息

void drawInfo()

{

setcolor(ege::BLACK);

setfont(20, 0, TEXT_FONT_NAME);

int infoY = BOARD_OFFSET_Y + BOARD_SIZE * CELL_SIZE + 20;

if (m_gameState == PLAYING) {

xyprintf(BOARD_OFFSET_X, infoY, TEXT_CURRENT_PLAYER,

m_currentPlayer == BLACK_PIECE ? TEXT_BLACK_PIECE : TEXT_WHITE_PIECE);

xyprintf(BOARD_OFFSET_X, infoY + 25, TEXT_GAME_MODE, m_vsAI ? TEXT_MODE_AI : TEXT_MODE_HUMAN);

// 在AI模式下显示先手信息

if (m_vsAI) {

xyprintf(

BOARD_OFFSET_X, infoY + 50, TEXT_FIRST_PLAYER, m_humanFirst ? TEXT_PLAYER_HUMAN : TEXT_PLAYER_AI);

}

} else {

const char* winner = getWinnerText();

xyprintf(BOARD_OFFSET_X, infoY, winner);

}

xyprintf(BOARD_OFFSET_X, infoY + (m_vsAI && m_gameState == PLAYING ? 75 : 50), TEXT_EXIT_HINT);

}

void drawGameOver()

{

if (m_gameState == PLAYING) {

if (m_gameEndImage != nullptr) {

// 清理缓存，降低内存占用.

delimage(m_gameEndImage);

m_gameEndImage = nullptr;

}

return; // 游戏未结束，不绘制

}

if (m_gameEndImage == nullptr) {

int bgWidth = 300;

int bgHeight = 100;

m_gameEndImage = newimage(bgWidth, bgHeight);

settarget(m_gameEndImage);

// 绘制半透明背景

setfillcolor(0xffffffff);

setfillstyle(SOLID_FILL, 0xffffffff);

// 绘制背景矩形

setlinewidth(3);

setbkmode(TRANSPARENT);

// 设置大号字体

setcolor(EGERGBA(255, 0, 0, 255)); // 红色文字

setfont(48, 0, TEXT_FONT_NAME);

// 根据游戏状态确定显示文本

const char* gameOverText = getWinnerText();

fillrect(0, 0, bgWidth, bgHeight);

rectangle(0, 0, bgWidth, bgHeight); // 计算文本居中位置

int textWidth = textwidth(gameOverText);

int textHeight = textheight(gameOverText);

int textX = (bgWidth - textWidth) / 2;

int textY = (bgHeight - textHeight) / 2;

// 绘制游戏结束文本

outtextxy(textX, textY, gameOverText);

m_imgX = (WINDOW_WIDTH - bgWidth) / 2;

m_imgY = (WINDOW_HEIGHT - bgHeight) / 2;

ege_setalpha(0xa0, m_gameEndImage); // 设置半透明效果

settarget(nullptr); // 结束绘制到临时图像

}

// putimage(m_imgX, m_imgY, m_gameEndImage);

putimage_withalpha(nullptr, m_gameEndImage, m_imgX, m_imgY);

}

// 获取获胜者文案

const char* getWinnerText()

{

if (m_gameState == DRAW) {

return TEXT_DRAW;

}

if (m_vsAI) {

// AI模式下判断玩家是否获胜

bool playerWins = false;

if (m_humanFirst && m_gameState == BLACK_WIN) {

playerWins = true; // 玩家是黑子且黑子获胜

} else if (!m_humanFirst && m_gameState == WHITE_WIN) {

playerWins = true; // 玩家是白子且白子获胜

}

return playerWins ? TEXT_PLAYER_WIN : TEXT_PLAYER_LOSE;

} else {

// 双人模式下使用传统文案

if (m_gameState == BLACK_WIN) {

return TEXT_BLACK_WIN;

} else if (m_gameState == WHITE_WIN) {

return TEXT_WHITE_WIN;

}

return TEXT_DRAW;

}

// 鼠标点击转换为棋盘坐标

bool mouseToBoard(int mouseX, int mouseY, int& row, int& col)

{

int x = mouseX - BOARD_OFFSET_X;

int y = mouseY - BOARD_OFFSET_Y;

// 计算最近的交叉点

col = (x + CELL_SIZE / 2) / CELL_SIZE;

row = (y + CELL_SIZE / 2) / CELL_SIZE;

// 检查是否在棋盘范围内

if (row >= 0 && row < BOARD_SIZE && col >= 0 && col < BOARD_SIZE) {

// 检查点击是否在交叉点附近

int actualX = col * CELL_SIZE;

int actualY = row * CELL_SIZE;

int dx = x - actualX;

int dy = y - actualY;

return (dx * dx + dy * dy <= (CELL_SIZE / 2) * (CELL_SIZE / 2));

}

return false;

}

// 下棋

bool placePiece(int row, int col, PieceType piece)

{

if (row < 0 || row >= BOARD_SIZE || col < 0 || col >= BOARD_SIZE) {

return false;

}

if (m_board[row][col] != EMPTY) {

return false;

}

m_board[row][col] = piece;

// 更新最后落子位置

m_lastRow = row;

m_lastCol = col;

return true;

}

// 检查是否五子连珠

bool checkWin(int row, int col, PieceType piece)

{

// 四个方向：水平、垂直、主对角线、副对角线

int directions[4][2] = {{0, 1}, {1, 0}, {1, 1}, {1, -1}};

for (int dir = 0; dir < 4; dir++) {

int count = 1; // 包含当前棋子

int dr = directions[dir][0];

int dc = directions[dir][1];

// 正方向统计

int r = row + dr, c = col + dc;

while (r >= 0 && r < BOARD_SIZE && c >= 0 && c < BOARD_SIZE && m_board[r][c] == piece) {

count++;

r += dr;

c += dc;

}

// 反方向统计

r = row - dr, c = col - dc;

while (r >= 0 && r < BOARD_SIZE && c >= 0 && c < BOARD_SIZE && m_board[r][c] == piece) {

count++;

r -= dr;

c -= dc;

}

if (count >= 5) {

return true;

}

return false;

}

// 检查棋盘是否已满

bool isBoardFull()

{

for (int i = 0; i < BOARD_SIZE; i++) {

for (int j = 0; j < BOARD_SIZE; j++) {

if (m_board[i][j] == EMPTY) {

return false;

}

return true;

}

// 简单AI：寻找最佳落子位置

void aiMove()

{

if (m_gameState != PLAYING) {

return;

}

// 检查是否轮到AI

bool isAITurn = (m_humanFirst && m_currentPlayer == WHITE_PIECE) ||

(!m_humanFirst && m_currentPlayer == BLACK_PIECE);

if (!isAITurn) {

return;

}

int bestRow = -1, bestCol = -1;

int bestScore = -1000;

// 遍历所有空位，评估每个位置的得分

for (int i = 0; i < BOARD_SIZE; i++) {

for (int j = 0; j < BOARD_SIZE; j++) {

if (m_board[i][j] == EMPTY) {

int score = evaluatePosition(i, j);

if (score > bestScore) {

bestScore = score;

bestRow = i;

bestCol = j;

}

// 如果找到了合适的位置，就下棋

if (bestRow != -1 && bestCol != -1) {

makeMove(bestRow, bestCol);

}

// 评估位置得分

int evaluatePosition(int row, int col)

{

int score = 0;

// 基础得分：靠近中心的位置更好

int centerRow = BOARD_SIZE / 2;

int centerCol = BOARD_SIZE / 2;

int distanceFromCenter = abs(row - centerRow) + abs(col - centerCol);

score += (BOARD_SIZE - distanceFromCenter);

// 获取AI的棋子类型

PieceType aiPiece = m_humanFirst ? WHITE_PIECE : BLACK_PIECE;

PieceType humanPiece = m_humanFirst ? BLACK_PIECE : WHITE_PIECE;

// 攻击得分：评估AI能形成的连珠

score += evaluateDirection(row, col, aiPiece) * 10;

// 防守得分：阻止玩家形成连珠

score += evaluateDirection(row, col, humanPiece) * 8;

return score;

}

// 评估方向得分

int evaluateDirection(int row, int col, PieceType piece)

{

int score = 0;

int directions[4][2] = {{0, 1}, {1, 0}, {1, 1}, {1, -1}};

for (int dir = 0; dir < 4; dir++) {

int dr = directions[dir][0];

int dc = directions[dir][1];

// 统计连续的同色棋子

int count = 0;

bool blocked = false;

// 正方向

int r = row + dr, c = col + dc;

while (r >= 0 && r < BOARD_SIZE && c >= 0 && c < BOARD_SIZE) {

if (m_board[r][c] == piece) {

count++;

} else if (m_board[r][c] != EMPTY) {

blocked = true;

break;

} else {

break;

}

r += dr;

c += dc;

}

// 反方向

r = row - dr, c = col - dc;

while (r >= 0 && r < BOARD_SIZE && c >= 0 && c < BOARD_SIZE) {

if (m_board[r][c] == piece) {

count++;

} else if (m_board[r][c] != EMPTY) {

if (!blocked) {

blocked = true;

}

break;

} else {

break;

}

r -= dr;

c -= dc;

}

// 根据连子数量和是否被阻挡给分

if (count >= 4) {

score += 1000; // 四连，非常重要

} else if (count >= 3) {

score += blocked ? 5 : 50;

} else if (count >= 2) {

score += blocked ? 2 : 10;

} else if (count >= 1) {

score += blocked ? 1 : 3;

}

return score;

}

// 执行移动

void makeMove(int row, int col)

{

if (placePiece(row, col, m_currentPlayer)) {

if (checkWin(row, col, m_currentPlayer)) {

m_gameState = (m_currentPlayer == BLACK_PIECE) ? BLACK_WIN : WHITE_WIN;

} else if (isBoardFull()) {

m_gameState = DRAW;

} else {

// 切换玩家

m_currentPlayer = (m_currentPlayer == BLACK_PIECE) ? WHITE_PIECE : BLACK_PIECE;

}

playPieceSound(m_currentPlayer); // 播放下棋音效

}

// 处理鼠标点击

void handleMouseClick(int mouseX, int mouseY)

{

if (m_gameState != PLAYING) {

return;

}

// 如果是AI回合，忽略鼠标点击

if (m_vsAI &&

((m_humanFirst && m_currentPlayer == WHITE_PIECE) || (!m_humanFirst && m_currentPlayer == BLACK_PIECE)))

{

return;

}

int row, col;

if (mouseToBoard(mouseX, mouseY, row, col)) {

makeMove(row, col);

}

// 获取当前游戏状态

GameState getGameState() const { return m_gameState; }

// 获取当前玩家

PieceType getCurrentPlayer() const { return m_currentPlayer; }

// 是否为AI模式

bool isVsAI() const { return m_vsAI; }

// 切换游戏模式

void toggleMode()

{

m_vsAI = !m_vsAI;

if (m_vsAI) {

m_humanFirst = true;

}

initGame();

}

// 重新开始游戏（在AI模式下轮换先手）

void restartGame()

{

if (m_vsAI) {

initGame(true); // 轮换先手

} else {

initGame(); // 不轮换先手

}

enum // MIDI音符编号定义

{

MIDI_BLACK = 45,

MIDI_WHITE = 57,

};

// 播放声音

void playPieceSound(PieceType piece)

{

#if ENABLE_SOUNDS

if (m_device == nullptr) {

return;

}

// 设置音色为木琴(Xylophone)，音色编号13，更符合棋子落盘的感觉

DWORD msg = 0xC000 | 13; // 0xC0 是更改乐器的控制命令，13 是木琴的乐器号

midiOutShortMsg(m_device, msg);

if (m_lastSound != 0) {

// 如果上一个音符还在播放，先停止它

midiOutShortMsg(m_device, 0x80 | (m_lastSound << 8)); // 0x80是音符关闭命令

}

// 播放黑子下棋音效 - 使用较低沉的G4音符

if (piece == BLACK_PIECE) {

// 0x90是音符开启命令，80是适中的音量(比127更柔和)

midiOutShortMsg(m_device, 0x90 | (MIDI_BLACK << 8) | (80 << 16));

m_lastSound = MIDI_BLACK; // 记录上一个音符

} else if (piece == WHITE_PIECE) {

// 播放白子下棋音效 - 使用较清脆的C5音符，与G4形成完美四度音程

midiOutShortMsg(m_device, 0x90 | (MIDI_WHITE << 8) | (80 << 16));

m_lastSound = MIDI_WHITE; // 记录上一个音符

}

m_soundTimer = 20; // 音效持续20帧

#endif

}

void updatePieceSound()

{

#if ENABLE_SOUNDS

if (m_soundTimer <= 0 || m_device == nullptr) {

return;

}

--m_soundTimer;

if (m_soundTimer == 0 && m_lastSound != 0) {

// 停止上一个音符

midiOutShortMsg(m_device, 0x80 | (m_lastSound << 8)); // 0x80是音符关闭命令

m_lastSound = 0; // 重置上一个音符

}

#endif

}

private:

int m_board[BOARD_SIZE][BOARD_SIZE]; // 棋盘数组

PIMAGE m_gameEndImage{}; // 用于临时缓存绘制

int m_imgX{}, m_imgY{}; // 用于结束动画

PieceType m_currentPlayer{}; // 当前玩家

GameState m_gameState{}; // 游戏状态

bool m_vsAI = true; // 是否对战AI

bool m_humanFirst = true; // AI模式下是否玩家先手

// 最后落子位置记录

int m_lastRow = -1; // 最后落子的行位置

int m_lastCol = -1; // 最后落子的列位置

#if ENABLE_SOUNDS

/// 音频相关

HMIDIOUT m_device{}; // MIDI输出设备句柄

UINT m_deviceID = 0; // 使用默认设备

int m_soundTimer = 0; // 音效倒计时, 到0时停止

DWORD m_lastSound{}; // 上一个音符

#endif

};

int main()

{

// 初始化图形窗口

initgraph(WINDOW_WIDTH, WINDOW_HEIGHT, INIT_RENDERMANUAL);

setrendermode(RENDER_MANUAL);

setcaption(TEXT_WINDOW_TITLE);

Gomoku game;

// 游戏主循环

while (is_run()) {

// 绘制游戏画面

game.drawBoard();

game.drawPieces();

game.drawInfo();

game.updatePieceSound(); // 更新音效状态

GameState state = game.getGameState();

if (state == PLAYING) {

// AI移动（如果是AI回合）

if (game.isVsAI()) {

game.aiMove();

}

} else {

game.drawGameOver();

}

// 处理鼠标消息

while (mousemsg()) {

mouse_msg msg = getmouse();

if (msg.is_down() && msg.is_left()) {

game.handleMouseClick(msg.x, msg.y);

}

// 处理键盘消息

if (kbhit()) {

int key = getch();

if (key == 27) { // ESC键退出

break;

} else if (key == 'r' || key == 'R') { // R键重新开始

cleardevice(0);

/// 打印重新初始化消息，提醒玩家游戏重开了

setcolor(EGERGB(255, 0, 0));

setfont(50, 0, TEXT_FONT_NAME);

xyprintf(50, WINDOW_HEIGHT / 2, TEXT_RESTART_MSG);

Sleep(500); // 稍等一会, 让玩家感知到游戏重开了.

game.restartGame();

} else if (key == 'm' || key == 'M') { // M键切换模式

game.toggleMode();

}

delay_fps(60);

}

closegraph();

return 0;

}

文章分类范例标签： demo, 游戏, 简单绘图

EGE 五子棋游戏 (支持双人、人机)

游戏简介

游戏特性

EGE 图形库能力应用

1. 基础图形绘制

2. 抗锯齿圆形绘制

3. 鼠标交互

4. 键盘输入

5. 图像缓存与半透明效果

双人对战实现

人机对战 AI 算法

AI 决策流程

位置评估算法

方向评估算法

音效系统实现

游戏操作指南

技术亮点总结

完整代码

归档

近期评论

近期文章

近期评论

归档

分类

2025 年 12 月
一	二	三	四	五	六	日
1	2	3	4	5	6	7
8	9	10	11	12	13	14
15	16	17	18	19	20	21
22	23	24	25	26	27	28
29	30	31
