EGE 康威生命游戏

发表于 2025年12月17日作者 xege

康威生命游戏（Conway’s Game of Life）是英国数学家约翰·康威（John Conway）于 1970 年发明的一个经典元胞自动机（Cellular Automaton）。这个零玩家游戏仅由简单的规则驱动，却能产生极其复杂的涌现行为，被广泛用于研究复杂系统、人工生命和混沌理论。本项目使用 EGE 图形库实现了完整的生命游戏可视化，支持交互式绘制、多种经典图案、视图缩放和轨迹效果。

源码在末尾，可滑到底部获取 ↓

生命游戏规则

生命游戏在一个无限的二维网格上进行，每个格子（细胞）有两种状态：存活或死亡。每一代的演化遵循以下四条规则：

孤独：任何活细胞周围少于 2 个活邻居则死亡
存活：任何活细胞周围有 2 或 3 个活邻居则继续存活
拥挤：任何活细胞周围超过 3 个活邻居则死亡
繁殖：任何死细胞周围恰好有 3 个活邻居则复活

这四条简单规则产生了丰富多彩的图案，包括静止图案、振荡器、飞船、滑翔机枪等。

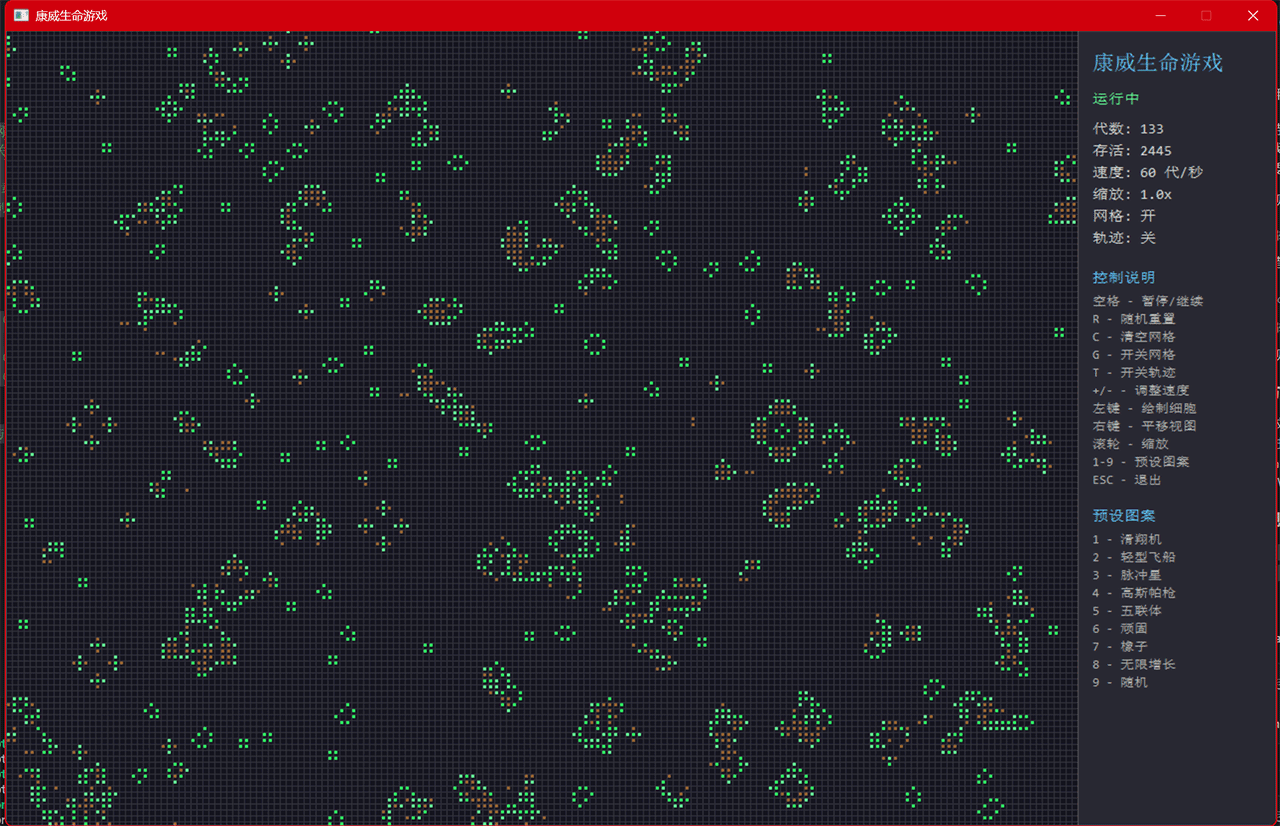

项目特性

交互式绘制：鼠标左键绘制/擦除细胞，支持拖动连续绘制
9 种预设图案：滑翔机、轻型飞船、脉冲星、高斯帕枪等经典图案
视图控制：鼠标右键平移视图，滚轮缩放（2x-30x）
轨迹效果：显示细胞的历史轨迹，形成渐变尾迹
速度控制：1-60 代/秒可调，支持暂停和单步执行
网格开关：可切换网格线显示
实时统计：显示代数、存活细胞数、速度等信息
视觉反馈：不同颜色表示新生、存活、死亡细胞

核心算法实现

邻居计数

int countNeighbors(int x, int y) const {
    int count = 0;
    for (int dy = -1; dy <= 1; dy++) {
        for (int dx = -1; dx <= 1; dx++) {
            if (dx == 0 && dy == 0) {
                continue;  // 跳过自己
            }
            if (getCell(x + dx, y + dy)) {
                count++;
            }
        }
    }
    return count;
}

int countNeighbors(int x, int y) const {

int count = 0;

for (int dy = -1; dy <= 1; dy++) {

for (int dx = -1; dx <= 1; dx++) {

if (dx == 0 && dy == 0) {

continue; // 跳过自己

}

if (getCell(x + dx, y + dy)) {

count++;

}

return count;

}

这个函数检查细胞周围 8 个方向的邻居（摩尔邻域），返回存活邻居的数量。

状态更新

void update() {
    m_prevGrid = m_grid;  // 保存上一代状态用于视觉效果
    m_population = 0;

    for (int y = 0; y < GRID_HEIGHT; y++) {
        for (int x = 0; x < GRID_WIDTH; x++) {
            int neighbors = countNeighbors(x, y);
            bool alive = getCell(x, y);
            bool nextState = false;

            if (alive) {
                // 规则 1, 2, 3
                nextState = (neighbors == 2 || neighbors == 3);
            } else {
                // 规则 4
                nextState = (neighbors == 3);
            }

            m_nextGrid[y * GRID_WIDTH + x] = nextState;

            if (nextState) {
                m_population++;
            }
        }
    }

    std::swap(m_grid, m_nextGrid);
    m_generation++;
}

void update() {

m_prevGrid = m_grid; // 保存上一代状态用于视觉效果

m_population = 0;

for (int y = 0; y < GRID_HEIGHT; y++) {

for (int x = 0; x < GRID_WIDTH; x++) {

int neighbors = countNeighbors(x, y);

bool alive = getCell(x, y);

bool nextState = false;

if (alive) {

// 规则 1, 2, 3

nextState = (neighbors == 2 || neighbors == 3);

} else {

// 规则 4

nextState = (neighbors == 3);

}

m_nextGrid[y * GRID_WIDTH + x] = nextState;

if (nextState) {

m_population++;

}

std::swap(m_grid, m_nextGrid);

m_generation++;

}

算法要点：

同时计算所有细胞的下一代状态，避免影响其他细胞的计算
使用双缓冲（m_grid 和 m_nextGrid）避免读写冲突
保存上一代状态用于视觉过渡效果

规则简化表达

生命游戏的规则可以用一行代码表达：

nextState = (neighbors == 3) || (alive && neighbors == 2);

1	nextState = (neighbors == 3) \|\| (alive && neighbors == 2);

这个表达式等价于四条规则：

neighbors == 3：死细胞复活，活细胞存活
alive && neighbors == 2：活细胞存活

经典图案

1. 滑翔机（Glider）

pattern = {{0, 0}, {1, 0}, {2, 0}, {2, -1}, {1, -2}};

1	pattern = {{0, 0}, {1, 0}, {2, 0}, {2, -1}, {1, -2}};

最小的飞船，每 4 代向右下移动一格，是生命游戏的标志性图案。

  █
█  █
 ███

█

█ █

███

2. 轻型飞船（LWSS）

pattern = {{0, 0}, {3, 0}, {4, 1}, {0, 2}, {4, 2},
           {1, 3}, {2, 3}, {3, 3}, {4, 3}};

1 2	pattern = {{0, 0}, {3, 0}, {4, 1}, {0, 2}, {4, 2}, {1, 3}, {2, 3}, {3, 3}, {4, 3}};

每 4 代水平移动 2 格的飞船。

3. 脉冲星（Pulsar）

周期为 3 的振荡器，具有完美的对称性。通过镜像生成完整图案：

// 生成一个象限
pattern = {{2, 0}, {3, 0}, {4, 0}, {0, 2}, {5, 2}, ...};

// 镜像到四个象限
for (auto& p : pattern) {
    fullPattern.push_back({p.first, p.second});
    fullPattern.push_back({-p.first - 1, p.second});
    fullPattern.push_back({p.first, -p.second - 1});
    fullPattern.push_back({-p.first - 1, -p.second - 1});
}

// 生成一个象限

pattern = {{2, 0}, {3, 0}, {4, 0}, {0, 2}, {5, 2}, ...};

// 镜像到四个象限

for (auto& p : pattern) {

fullPattern.push_back({p.first, p.second});

fullPattern.push_back({-p.first - 1, p.second});

fullPattern.push_back({p.first, -p.second - 1});

fullPattern.push_back({-p.first - 1, -p.second - 1});

}

4. 高斯帕滑翔机枪（Gosper Glider Gun）

pattern = {{0, 4}, {0, 5}, {1, 4}, {1, 5},
           {10, 4}, {10, 5}, {10, 6}, {11, 3}, ...};

1 2	pattern = {{0, 4}, {0, 5}, {1, 4}, {1, 5}, {10, 4}, {10, 5}, {10, 6}, {11, 3}, ...};

第一个被发现的能产生无限滑翔机的图案，证明了生命游戏可以产生无限增长的结构。每 30 代发射一个滑翔机。

5. R-五格体（R-pentomino）

pattern = {{0, 0}, {1, 0}, {0, 1}, {-1, 1}, {0, 2}};

1	pattern = {{0, 0}, {1, 0}, {0, 1}, {-1, 1}, {0, 2}};

仅由 5 个细胞组成，却要经过 1103 代才稳定下来，最终产生 116 个细胞。展示了简单初始状态可以产生极其复杂的演化。

6. 橡子（Acorn）

pattern = {{0, 0}, {1, -2}, {1, 0}, {3, -1},
           {4, 0}, {5, 0}, {6, 0}};

1 2	pattern = {{0, 0}, {1, -2}, {1, 0}, {3, -1}, {4, 0}, {5, 0}, {6, 0}};

仅 7 个细胞，经过 5206 代才稳定，最终产生 633 个细胞。

视觉效果实现

轨迹效果

void updateTrail() {
    if (m_showTrail) {
        for (int i = 0; i < GRID_WIDTH * GRID_HEIGHT; i++) {
            if (m_grid[i]) {
                m_trailGrid[i] = 255;  // 活细胞轨迹最亮
            } else if (m_trailGrid[i] > 0) {
                m_trailGrid[i] = std::max(0, m_trailGrid[i] - 15);  // 渐变淡化
            }
        }
    }
}

void renderTrail() {
    for (int y = 0; y < GRID_HEIGHT; y++) {
        for (int x = 0; x < GRID_WIDTH; x++) {
            int trail = m_trailGrid[y * GRID_WIDTH + x];
            if (trail > 0 && !m_grid[y * GRID_WIDTH + x]) {
                int r = 30 * trail / 255;
                int g = 60 * trail / 255;
                int b = 40 * trail / 255;
                setfillcolor(EGERGB(r, g, b));
                bar(screenX, screenY, screenX + cellSize - 1, screenY + cellSize - 1);
            }
        }
    }
}

void updateTrail() {

if (m_showTrail) {

for (int i = 0; i < GRID_WIDTH * GRID_HEIGHT; i++) {

if (m_grid[i]) {

m_trailGrid[i] = 255; // 活细胞轨迹最亮

} else if (m_trailGrid[i] > 0) {

m_trailGrid[i] = std::max(0, m_trailGrid[i] - 15); // 渐变淡化

}

void renderTrail() {

for (int y = 0; y < GRID_HEIGHT; y++) {

for (int x = 0; x < GRID_WIDTH; x++) {

int trail = m_trailGrid[y * GRID_WIDTH + x];

if (trail > 0 && !m_grid[y * GRID_WIDTH + x]) {

int r = 30 * trail / 255;

int g = 60 * trail / 255;

int b = 40 * trail / 255;

setfillcolor(EGERGB(r, g, b));

bar(screenX, screenY, screenX + cellSize - 1, screenY + cellSize - 1);

}

轨迹效果为每个细胞维护一个强度值（0-255），活细胞设为最亮，死亡后逐渐淡化，形成渐变的历史轨迹。

细胞状态颜色

color_t cellColor;
if (alive && !wasAlive) {
    cellColor = LIFE_COLOR_CELL_BORN;    // 新生 - 浅绿色
} else if (!alive && wasAlive) {
    cellColor = LIFE_COLOR_CELL_DYING;   // 死亡 - 橙色
} else {
    cellColor = LIFE_COLOR_CELL_ALIVE;   // 存活 - 绿色
}

color_t cellColor;

if (alive && !wasAlive) {

cellColor = LIFE_COLOR_CELL_BORN; // 新生 - 浅绿色

} else if (!alive && wasAlive) {

cellColor = LIFE_COLOR_CELL_DYING; // 死亡 - 橙色

} else {

cellColor = LIFE_COLOR_CELL_ALIVE; // 存活 - 绿色

}

通过对比当前状态和上一代状态，用不同颜色表示细胞的生命周期。

交互功能实现

鼠标绘制

void handleMouseDrawing(mouse_msg msg) {
    if (msg.is_left()) {
        if (msg.is_down()) {
            m_isDrawing = true;
            int gridX = (int)((msg.x - m_offsetX) / m_cellSize);
            int gridY = (int)((msg.y - m_offsetY) / m_cellSize);

            // 记录绘制值（toggle 当前细胞状态）
            m_drawValue = !getCell(gridX, gridY);
            setCell(gridX, gridY, m_drawValue);
        } else if (msg.is_move() && m_isDrawing) {
            // 拖动连续绘制
            int gridX = (int)((msg.x - m_offsetX) / m_cellSize);
            int gridY = (int)((msg.y - m_offsetY) / m_cellSize);
            setCell(gridX, gridY, m_drawValue);
        } else if (msg.is_up()) {
            m_isDrawing = false;
        }
    }
}

void handleMouseDrawing(mouse_msg msg) {

if (msg.is_left()) {

if (msg.is_down()) {

m_isDrawing = true;

int gridX = (int)((msg.x - m_offsetX) / m_cellSize);

int gridY = (int)((msg.y - m_offsetY) / m_cellSize);

// 记录绘制值（toggle 当前细胞状态）

m_drawValue = !getCell(gridX, gridY);

setCell(gridX, gridY, m_drawValue);

} else if (msg.is_move() && m_isDrawing) {

// 拖动连续绘制

int gridX = (int)((msg.x - m_offsetX) / m_cellSize);

int gridY = (int)((msg.y - m_offsetY) / m_cellSize);

setCell(gridX, gridY, m_drawValue);

} else if (msg.is_up()) {

m_isDrawing = false;

}

支持点击切换细胞状态，以及拖动连续绘制。

视图平移

void handlePan(mouse_msg msg) {
    if (msg.is_right()) {
        if (msg.is_down()) {
            m_isDragging = true;
            m_lastMouseX = msg.x;
            m_lastMouseY = msg.y;
        } else if (msg.is_move() && m_isDragging) {
            m_offsetX += msg.x - m_lastMouseX;
            m_offsetY += msg.y - m_lastMouseY;
            m_lastMouseX = msg.x;
            m_lastMouseY = msg.y;
        } else if (msg.is_up()) {
            m_isDragging = false;
        }
    }
}

void handlePan(mouse_msg msg) {

if (msg.is_right()) {

if (msg.is_down()) {

m_isDragging = true;

m_lastMouseX = msg.x;

m_lastMouseY = msg.y;

} else if (msg.is_move() && m_isDragging) {

m_offsetX += msg.x - m_lastMouseX;

m_offsetY += msg.y - m_lastMouseY;

m_lastMouseX = msg.x;

m_lastMouseY = msg.y;

} else if (msg.is_up()) {

m_isDragging = false;

}

右键拖动实现视图平移，类似地图导航。

缩放功能

void handleZoom(mouse_msg msg) {
    if (msg.is_wheel()) {
        float oldCellSize = m_cellSize;
        float zoomFactor = msg.wheel > 0 ? 1.2f : 0.8f;
        m_cellSize *= zoomFactor;
        m_cellSize = std::max(2.0f, std::min(30.0f, m_cellSize));

        // 以鼠标位置为中心缩放
        float mouseGridX = (msg.x - m_offsetX) / oldCellSize;
        float mouseGridY = (msg.y - m_offsetY) / oldCellSize;
        m_offsetX = msg.x - mouseGridX * m_cellSize;
        m_offsetY = msg.y - mouseGridY * m_cellSize;
    }
}

void handleZoom(mouse_msg msg) {

if (msg.is_wheel()) {

float oldCellSize = m_cellSize;

float zoomFactor = msg.wheel > 0 ? 1.2f : 0.8f;

m_cellSize *= zoomFactor;

m_cellSize = std::max(2.0f, std::min(30.0f, m_cellSize));

// 以鼠标位置为中心缩放

float mouseGridX = (msg.x - m_offsetX) / oldCellSize;

float mouseGridY = (msg.y - m_offsetY) / oldCellSize;

m_offsetX = msg.x - mouseGridX * m_cellSize;

m_offsetY = msg.y - mouseGridY * m_cellSize;

}

缩放算法要点：

保持鼠标指向的网格坐标不变
计算鼠标在网格中的相对位置
根据新的 cellSize 重新计算偏移量

数学公式：
$$\text{mouseGridX} = \frac{\text{mouseX} – \text{offsetX}_{\text{old}}}{\text{cellSize}_{\text{old}}}$$
$$\text{offsetX}_{\text{new}} = \text{mouseX} – \text{mouseGridX} \times \text{cellSize}_{\text{new}}$$

性能优化

1. 视锥剔除（Frustum Culling）

void renderCells() {
    for (int y = 0; y < GRID_HEIGHT; y++) {
        for (int x = 0; x < GRID_WIDTH; x++) {
            float screenX = m_offsetX + x * m_cellSize;
            float screenY = m_offsetY + y * m_cellSize;

            // 剔除屏幕外的细胞
            if (screenX + m_cellSize < 0 || screenX > GRID_AREA_WIDTH ||
                screenY + m_cellSize < 0 || screenY > WINDOW_HEIGHT) {
                continue;
            }

            // 只渲染可见区域
            drawCell(x, y, screenX, screenY);
        }
    }
}

void renderCells() {

for (int y = 0; y < GRID_HEIGHT; y++) {

for (int x = 0; x < GRID_WIDTH; x++) {

float screenX = m_offsetX + x * m_cellSize;

float screenY = m_offsetY + y * m_cellSize;

// 剔除屏幕外的细胞

if (screenX + m_cellSize < 0 || screenX > GRID_AREA_WIDTH ||

screenY + m_cellSize < 0 || screenY > WINDOW_HEIGHT) {

continue;

}

// 只渲染可见区域

drawCell(x, y, screenX, screenY);

}

只渲染屏幕可见区域的细胞，大幅提升性能。

2. 帧率控制

void run() {
    while (is_run()) {
        if (!m_paused) {
            m_frameCount++;
            int updateInterval = 60 / m_speed;  // 控制更新频率

            if (m_frameCount >= updateInterval) {
                update();
                m_frameCount = 0;
            }
        }

        render();
        delay_fps(60);  // 保持 60 FPS 渲染
    }
}

void run() {

while (is_run()) {

if (!m_paused) {

m_frameCount++;

int updateInterval = 60 / m_speed; // 控制更新频率

if (m_frameCount >= updateInterval) {

update();

m_frameCount = 0;

}

render();

delay_fps(60); // 保持 60 FPS 渲染

}

渲染和逻辑更新分离，确保流畅的视觉体验。

3. 一维数组存储

std::vector<bool> m_grid;  // 大小为 GRID_WIDTH * GRID_HEIGHT

// 访问 (x, y) 位置
int index = y * GRID_WIDTH + x;
bool alive = m_grid[index];

std::vector<bool> m_grid; // 大小为 GRID_WIDTH * GRID_HEIGHT

// 访问 (x, y) 位置

int index = y * GRID_WIDTH + x;

bool alive = m_grid[index];

使用一维数组替代二维数组，提升缓存友好性和访问效率。

EGE 图形库应用

网格绘制

void drawGrid() {
    if (m_showGrid && m_cellSize >= 4) {
        setcolor(LIFE_COLOR_GRID);

        // 垂直线
        for (int x = 0; x <= GRID_WIDTH; x++) {
            float screenX = m_offsetX + x * m_cellSize;
            if (screenX >= 0 && screenX < GRID_AREA_WIDTH) {
                line((int)screenX, 0, (int)screenX, WINDOW_HEIGHT);
            }
        }

        // 水平线
        for (int y = 0; y <= GRID_HEIGHT; y++) {
            float screenY = m_offsetY + y * m_cellSize;
            if (screenY >= 0 && screenY < WINDOW_HEIGHT) {
                line(0, (int)screenY, GRID_AREA_WIDTH, (int)screenY);
            }
        }
    }
}

void drawGrid() {

if (m_showGrid && m_cellSize >= 4) {

setcolor(LIFE_COLOR_GRID);

// 垂直线

for (int x = 0; x <= GRID_WIDTH; x++) {

float screenX = m_offsetX + x * m_cellSize;

if (screenX >= 0 && screenX < GRID_AREA_WIDTH) {

line((int)screenX, 0, (int)screenX, WINDOW_HEIGHT);

}

// 水平线

for (int y = 0; y <= GRID_HEIGHT; y++) {

float screenY = m_offsetY + y * m_cellSize;

if (screenY >= 0 && screenY < WINDOW_HEIGHT) {

line(0, (int)screenY, GRID_AREA_WIDTH, (int)screenY);

}

当 cellSize 足够大时绘制网格线，提升视觉效果。

信息面板

void drawPanel() {
    // 面板背景
    setfillcolor(LIFE_COLOR_PANEL);
    bar(GRID_AREA_WIDTH, 0, WINDOW_WIDTH, WINDOW_HEIGHT);

    // 统计信息
    sprintf(buf, "代数: %d", m_generation);
    outtextxy(x, y, buf);

    sprintf(buf, "存活: %d", m_population);
    outtextxy(x, y + 22, buf);

    sprintf(buf, "速度: %d 代/秒", m_speed);
    outtextxy(x, y + 44, buf);
}

void drawPanel() {

// 面板背景

setfillcolor(LIFE_COLOR_PANEL);

bar(GRID_AREA_WIDTH, 0, WINDOW_WIDTH, WINDOW_HEIGHT);

// 统计信息

sprintf(buf, "代数: %d", m_generation);

outtextxy(x, y, buf);

sprintf(buf, "存活: %d", m_population);

outtextxy(x, y + 22, buf);

sprintf(buf, "速度: %d 代/秒", m_speed);

outtextxy(x, y + 44, buf);

}

右侧面板显示实时统计和操作说明。

操作指南

空格：暂停/继续
R：随机生成细胞
C：清空网格
G：切换网格线
T：切换轨迹效果
+ / –：调整速度
1-9：加载预设图案
鼠标左键：绘制/擦除细胞
鼠标右键：平移视图
滚轮：缩放
ESC：退出

数学与哲学意义

生命游戏不仅是一个有趣的可视化项目，还蕴含深刻的数学和哲学意义：

涌现性：简单规则产生复杂行为，展示了复杂系统的涌现特性
图灵完备：生命游戏被证明是图灵完备的，可以模拟任何计算机程序
自组织：无需外部干预，系统自发形成有序结构
混沌边缘：介于完全随机和完全有序之间的临界状态
人工生命：探索生命的本质特征——自我复制、演化、适应

通过这个项目，你不仅能学习元胞自动机和可视化技术，还能深入思考生命、计算和复杂性的本质。

完整代码

/**
 * @file graph_game_of_life.cpp
 * @brief Conway's Game of Life Visualization Demo
 *
 * 康威生命游戏可视化演示
 * - 经典的元胞自动机模拟
 * - 简单规则产生复杂涌现行为
 * - 支持鼠标绘制初始状态
 * - 内置多种经典图案
 *
 * Controls / 控制:
 *   Space    - Pause/Resume 暂停/继续
 *   R        - Random reset 随机重置
 *   C        - Clear grid 清空网格
 *   G        - Toggle grid lines 开关网格线
 *   T        - Toggle trail effect 开关轨迹效果
 *   +/-      - Speed up/down 加速/减速
 *   1-9      - Load preset patterns 加载预设图案
 *   Mouse Left  - Draw/Erase cells 绘制/擦除细胞
 *   Mouse Right - Pan view 平移视图
 *   Mouse Wheel - Zoom in/out 缩放
 *   ESC      - Exit 退出
 *
 * Rules / 规则:
 *   1. 任何活细胞周围少于2个活邻居则死亡（孤独）
 *   2. 任何活细胞周围有2-3个活邻居则存活
 *   3. 任何活细胞周围超过3个活邻居则死亡（拥挤）
 *   4. 任何死细胞周围恰好3个活邻居则复活（繁殖）
 */

// 禁用 Windows.h 中的 min/max 宏，避免与 std::min/std::max 冲突
#ifndef NOMINMAX
#define NOMINMAX
#endif

#include <graphics.h>
#include <cmath>
#include <cstdlib>
#include <ctime>
#include <vector>
#include <string>
#include <algorithm>

#ifdef _MSC_VER
#define DEMO_TITLE      "康威生命游戏"
#define STR_PAUSED      "已暂停"
#define STR_RUNNING     "运行中"
#define STR_GENERATION  "代数: %d"
#define STR_POPULATION  "存活: %d"
#define STR_SPEED       "速度: %d 代/秒"
#define STR_ZOOM        "缩放: %.1fx"
#define STR_GRID        "网格: %s"
#define STR_TRAIL       "轨迹: %s"
#define STR_ON          "开"
#define STR_OFF         "关"
#define STR_CONTROLS    "控制说明"
#define STR_SPACE       "空格 - 暂停/继续"
#define STR_KEY_R       "R - 随机重置"
#define STR_KEY_C       "C - 清空网格"
#define STR_KEY_G       "G - 开关网格"
#define STR_KEY_T       "T - 开关轨迹"
#define STR_PLUS_MINUS  "+/- - 调整速度"
#define STR_MOUSE_L     "左键 - 绘制细胞"
#define STR_MOUSE_R     "右键 - 平移视图"
#define STR_WHEEL       "滚轮 - 缩放"
#define STR_NUM_KEYS    "1-9 - 预设图案"
#define STR_ESC         "ESC - 退出"
#define STR_PATTERNS    "预设图案"
#define STR_PAT_GLIDER  "1 - 滑翔机"
#define STR_PAT_LWSS    "2 - 轻型飞船"
#define STR_PAT_PULSAR  "3 - 脉冲星"
#define STR_PAT_GOSPER  "4 - 高斯帕枪"
#define STR_PAT_PENTA   "5 - 五联体"
#define STR_PAT_DIEHARD "6 - 顽固"
#define STR_PAT_ACORN   "7 - 橡子"
#define STR_PAT_INF     "8 - 无限增长"
#define STR_PAT_RANDOM  "9 - 随机"
#else
#define DEMO_TITLE      "Conway's Game of Life"
#define STR_PAUSED      "Paused"
#define STR_RUNNING     "Running"
#define STR_GENERATION  "Gen: %d"
#define STR_POPULATION  "Pop: %d"
#define STR_SPEED       "Speed: %d gen/s"
#define STR_ZOOM        "Zoom: %.1fx"
#define STR_GRID        "Grid: %s"
#define STR_TRAIL       "Trail: %s"
#define STR_ON          "On"
#define STR_OFF         "Off"
#define STR_CONTROLS    "Controls"
#define STR_SPACE       "Space - Pause/Resume"
#define STR_KEY_R       "R - Random Reset"
#define STR_KEY_C       "C - Clear Grid"
#define STR_KEY_G       "G - Toggle Grid"
#define STR_KEY_T       "T - Toggle Trail"
#define STR_PLUS_MINUS  "+/- - Adjust Speed"
#define STR_MOUSE_L     "LMB - Draw Cells"
#define STR_MOUSE_R     "RMB - Pan View"
#define STR_WHEEL       "Wheel - Zoom"
#define STR_NUM_KEYS    "1-9 - Preset Patterns"
#define STR_ESC         "ESC - Exit"
#define STR_PATTERNS    "Patterns"
#define STR_PAT_GLIDER  "1 - Glider"
#define STR_PAT_LWSS    "2 - LWSS"
#define STR_PAT_PULSAR  "3 - Pulsar"
#define STR_PAT_GOSPER  "4 - Gosper Gun"
#define STR_PAT_PENTA   "5 - Pentadecathlon"
#define STR_PAT_DIEHARD "6 - Diehard"
#define STR_PAT_ACORN   "7 - Acorn"
#define STR_PAT_INF     "8 - Infinite Growth"
#define STR_PAT_RANDOM  "9 - Random"
#endif

using namespace ege;

// Window dimensions
const int WINDOW_WIDTH    = 1280;
const int WINDOW_HEIGHT   = 800;
const int PANEL_WIDTH     = 200;
const int GRID_AREA_WIDTH = WINDOW_WIDTH - PANEL_WIDTH;

// Colors
const color_t LIFE_COLOR_BG         = EGERGB(20, 20, 30);
const color_t LIFE_COLOR_PANEL      = EGERGB(40, 40, 50);
const color_t LIFE_COLOR_TEXT       = EGERGB(220, 220, 220);
const color_t LIFE_COLOR_TITLE      = EGERGB(100, 200, 255);
const color_t LIFE_COLOR_GRID       = EGERGB(50, 50, 60);
const color_t LIFE_COLOR_CELL_ALIVE = EGERGB(50, 255, 100);
const color_t LIFE_COLOR_CELL_BORN  = EGERGB(100, 255, 150);
const color_t LIFE_COLOR_CELL_DYING = EGERGB(150, 100, 50);
const color_t LIFE_COLOR_TRAIL      = EGERGB(30, 60, 40);

// Grid settings
const int GRID_WIDTH  = 200;
const int GRID_HEIGHT = 150;

class GameOfLife
{
public:
    GameOfLife() :
        m_paused(true),
        m_showGrid(true),
        m_showTrail(false),
        m_generation(0),
        m_population(0),
        m_speed(10),
        m_cellSize(6.0f),
        m_offsetX(0.0f),
        m_offsetY(0.0f),
        m_isDragging(false),
        m_isDrawing(false),
        m_drawValue(true),
        m_lastMouseX(0),
        m_lastMouseY(0),
        m_frameCount(0)
    {
        m_grid.resize(GRID_WIDTH * GRID_HEIGHT, false);
        m_nextGrid.resize(GRID_WIDTH * GRID_HEIGHT, false);
        m_trailGrid.resize(GRID_WIDTH * GRID_HEIGHT, 0);
        m_prevGrid.resize(GRID_WIDTH * GRID_HEIGHT, false);

        // Center the view
        m_offsetX = (GRID_AREA_WIDTH - GRID_WIDTH * m_cellSize) / 2;
        m_offsetY = (WINDOW_HEIGHT - GRID_HEIGHT * m_cellSize) / 2;

        // Load default pattern (Gosper Glider Gun)
        loadPattern(4);
    }

    void run()
    {
        initgraph(WINDOW_WIDTH, WINDOW_HEIGHT);
        setbkmode(TRANSPARENT);
        setcaption(DEMO_TITLE);
        setbkcolor(LIFE_COLOR_BG);

        while (is_run()) {
            handleInput();

            if (!m_paused) {
                m_frameCount++;
                int updateInterval = 60 / m_speed;
                if (updateInterval < 1) {
                    updateInterval = 1;
                }

                if (m_frameCount >= updateInterval) {
                    update();
                    m_frameCount = 0;
                }
            }

            render();
            delay_fps(60);
        }

        closegraph();
    }

private:
    // Grid access helpers
    bool getCell(int x, int y) const
    {
        if (x < 0 || x >= GRID_WIDTH || y < 0 || y >= GRID_HEIGHT) {
            return false;
        }
        return m_grid[y * GRID_WIDTH + x];
    }

    void setCell(int x, int y, bool alive)
    {
        if (x >= 0 && x < GRID_WIDTH && y >= 0 && y < GRID_HEIGHT) {
            m_grid[y * GRID_WIDTH + x] = alive;
        }
    }

    int countNeighbors(int x, int y) const
    {
        int count = 0;
        for (int dy = -1; dy <= 1; dy++) {
            for (int dx = -1; dx <= 1; dx++) {
                if (dx == 0 && dy == 0) {
                    continue;
                }
                if (getCell(x + dx, y + dy)) {
                    count++;
                }
            }
        }
        return count;
    }

    void update()
    {
        // Save previous state for visual effects
        m_prevGrid = m_grid;

        m_population = 0;

        for (int y = 0; y < GRID_HEIGHT; y++) {
            for (int x = 0; x < GRID_WIDTH; x++) {
                int  neighbors = countNeighbors(x, y);
                bool alive     = getCell(x, y);
                bool nextState = false;

                if (alive) {
                    // Rule 1 & 3: Die if < 2 or > 3 neighbors
                    // Rule 2: Survive if 2 or 3 neighbors
                    nextState = (neighbors == 2 || neighbors == 3);
                } else {
                    // Rule 4: Birth if exactly 3 neighbors
                    nextState = (neighbors == 3);
                }

                m_nextGrid[y * GRID_WIDTH + x] = nextState;

                if (nextState) {
                    m_population++;
                }

                // Update trail
                if (m_showTrail) {
                    if (alive) {
                        m_trailGrid[y * GRID_WIDTH + x] = 255;
                    } else if (m_trailGrid[y * GRID_WIDTH + x] > 0) {
                        m_trailGrid[y * GRID_WIDTH + x] = std::max(0, m_trailGrid[y * GRID_WIDTH + x] - 15);
                    }
                }
            }
        }

        std::swap(m_grid, m_nextGrid);
        m_generation++;
    }

    void render()
    {
        cleardevice();

        // Draw trail effect
        if (m_showTrail) {
            for (int y = 0; y < GRID_HEIGHT; y++) {
                for (int x = 0; x < GRID_WIDTH; x++) {
                    int trail = m_trailGrid[y * GRID_WIDTH + x];
                    if (trail > 0 && !m_grid[y * GRID_WIDTH + x]) {
                        float screenX = m_offsetX + x * m_cellSize;
                        float screenY = m_offsetY + y * m_cellSize;

                        if (screenX + m_cellSize >= 0 && screenX < GRID_AREA_WIDTH && screenY + m_cellSize >= 0 &&
                            screenY < WINDOW_HEIGHT)
                        {
                            int r = 30 * trail / 255;
                            int g = 60 * trail / 255;
                            int b = 40 * trail / 255;
                            setfillcolor(EGERGB(r, g, b));
                            bar((int)screenX, (int)screenY, (int)(screenX + m_cellSize - 1),
                                (int)(screenY + m_cellSize - 1));
                        }
                    }
                }
            }
        }

        // Draw grid lines
        if (m_showGrid && m_cellSize >= 4) {
            setcolor(LIFE_COLOR_GRID);
            for (int x = 0; x <= GRID_WIDTH; x++) {
                float screenX = m_offsetX + x * m_cellSize;
                if (screenX >= 0 && screenX < GRID_AREA_WIDTH) {
                    line((int)screenX, 0, (int)screenX, WINDOW_HEIGHT);
                }
            }
            for (int y = 0; y <= GRID_HEIGHT; y++) {
                float screenY = m_offsetY + y * m_cellSize;
                if (screenY >= 0 && screenY < WINDOW_HEIGHT) {
                    line(0, (int)screenY, GRID_AREA_WIDTH, (int)screenY);
                }
            }
        }

        // Draw cells
        for (int y = 0; y < GRID_HEIGHT; y++) {
            for (int x = 0; x < GRID_WIDTH; x++) {
                bool alive    = m_grid[y * GRID_WIDTH + x];
                bool wasAlive = m_prevGrid[y * GRID_WIDTH + x];

                if (alive || (wasAlive && !alive && !m_paused)) {
                    float screenX = m_offsetX + x * m_cellSize;
                    float screenY = m_offsetY + y * m_cellSize;

                    // Culling
                    if (screenX + m_cellSize < 0 || screenX > GRID_AREA_WIDTH || screenY + m_cellSize < 0 ||
                        screenY > WINDOW_HEIGHT)
                    {
                        continue;
                    }

                    color_t cellColor;
                    if (alive && !wasAlive) {
                        // Just born
                        cellColor = LIFE_COLOR_CELL_BORN;
                    } else if (!alive && wasAlive) {
                        // Just died
                        cellColor = LIFE_COLOR_CELL_DYING;
                    } else {
                        // Alive
                        cellColor = LIFE_COLOR_CELL_ALIVE;
                    }

                    setfillcolor(cellColor);

                    float margin = m_cellSize >= 6 ? 1.0f : 0.0f;
                    bar((int)(screenX + margin), (int)(screenY + margin), (int)(screenX + m_cellSize - margin - 1),
                        (int)(screenY + m_cellSize - margin - 1));
                }
            }
        }

        // Draw panel
        drawPanel();
    }

    void drawPanel()
    {
        // Panel background
        setfillcolor(LIFE_COLOR_PANEL);
        bar(GRID_AREA_WIDTH, 0, WINDOW_WIDTH, WINDOW_HEIGHT);

        // Border
        setcolor(EGERGB(80, 80, 90));
        line(GRID_AREA_WIDTH, 0, GRID_AREA_WIDTH, WINDOW_HEIGHT);

        int  x = GRID_AREA_WIDTH + 15;
        int  y = 20;
        char buf[64];

        // Title
        setfont(24, 0, "Consolas");
        setcolor(LIFE_COLOR_TITLE);
        outtextxy(x, y, DEMO_TITLE);
        y += 40;

        // Status
        setfont(16, 0, "Consolas");
        setcolor(m_paused ? EGERGB(255, 150, 100) : EGERGB(100, 255, 150));
        outtextxy(x, y, m_paused ? STR_PAUSED : STR_RUNNING);
        y += 30;

        // Stats
        setcolor(LIFE_COLOR_TEXT);
        sprintf(buf, STR_GENERATION, m_generation);
        outtextxy(x, y, buf);
        y += 22;

        sprintf(buf, STR_POPULATION, m_population);
        outtextxy(x, y, buf);
        y += 22;

        sprintf(buf, STR_SPEED, m_speed);
        outtextxy(x, y, buf);
        y += 22;

        sprintf(buf, STR_ZOOM, m_cellSize / 6.0f);
        outtextxy(x, y, buf);
        y += 22;

        sprintf(buf, STR_GRID, m_showGrid ? STR_ON : STR_OFF);
        outtextxy(x, y, buf);
        y += 22;

        sprintf(buf, STR_TRAIL, m_showTrail ? STR_ON : STR_OFF);
        outtextxy(x, y, buf);
        y += 40;

        // Controls
        setcolor(LIFE_COLOR_TITLE);
        outtextxy(x, y, STR_CONTROLS);
        y += 25;

        setfont(14, 0, "Consolas");
        setcolor(EGERGB(180, 180, 180));

        outtextxy(x, y, STR_SPACE);
        y += 18;
        outtextxy(x, y, STR_KEY_R);
        y += 18;
        outtextxy(x, y, STR_KEY_C);
        y += 18;
        outtextxy(x, y, STR_KEY_G);
        y += 18;
        outtextxy(x, y, STR_KEY_T);
        y += 18;
        outtextxy(x, y, STR_PLUS_MINUS);
        y += 18;
        outtextxy(x, y, STR_MOUSE_L);
        y += 18;
        outtextxy(x, y, STR_MOUSE_R);
        y += 18;
        outtextxy(x, y, STR_WHEEL);
        y += 18;
        outtextxy(x, y, STR_NUM_KEYS);
        y += 18;
        outtextxy(x, y, STR_ESC);
        y += 35;

        // Patterns
        setfont(16, 0, "Consolas");
        setcolor(LIFE_COLOR_TITLE);
        outtextxy(x, y, STR_PATTERNS);
        y += 25;

        setfont(14, 0, "Consolas");
        setcolor(EGERGB(180, 180, 180));

        outtextxy(x, y, STR_PAT_GLIDER);
        y += 18;
        outtextxy(x, y, STR_PAT_LWSS);
        y += 18;
        outtextxy(x, y, STR_PAT_PULSAR);
        y += 18;
        outtextxy(x, y, STR_PAT_GOSPER);
        y += 18;
        outtextxy(x, y, STR_PAT_PENTA);
        y += 18;
        outtextxy(x, y, STR_PAT_DIEHARD);
        y += 18;
        outtextxy(x, y, STR_PAT_ACORN);
        y += 18;
        outtextxy(x, y, STR_PAT_INF);
        y += 18;
        outtextxy(x, y, STR_PAT_RANDOM);
    }

    void handleInput()
    {
        // Keyboard input
        while (kbhit()) {
            int key = getch();
            switch (key) {
            case ' ':
                m_paused = !m_paused;
                break;

            case 'r':
            case 'R':
                randomize();
                break;

            case 'c':
            case 'C':
                clear();
                break;

            case 'g':
            case 'G':
                m_showGrid = !m_showGrid;
                break;

            case 't':
            case 'T':
                m_showTrail = !m_showTrail;
                if (!m_showTrail) {
                    std::fill(m_trailGrid.begin(), m_trailGrid.end(), 0);
                }
                break;

            case '+':
            case '=':
                m_speed = std::min(60, m_speed + 5);
                break;

            case '-':
            case '_':
                m_speed = std::max(1, m_speed - 5);
                break;

            case '1':
            case '2':
            case '3':
            case '4':
            case '5':
            case '6':
            case '7':
            case '8':
            case '9':
                loadPattern(key - '0');
                break;

            case key_esc:
                closegraph();
                exit(0);
                break;
            }
        }

        // Mouse input
        while (mousemsg()) {
            mouse_msg msg = getmouse();

            if (msg.x < GRID_AREA_WIDTH) {
                if (msg.is_left()) {
                    if (msg.is_down()) {
                        m_isDrawing = true;
                        int gridX   = (int)((msg.x - m_offsetX) / m_cellSize);
                        int gridY   = (int)((msg.y - m_offsetY) / m_cellSize);
                        if (gridX >= 0 && gridX < GRID_WIDTH && gridY >= 0 && gridY < GRID_HEIGHT) {
                            m_drawValue = !getCell(gridX, gridY);
                            setCell(gridX, gridY, m_drawValue);
                            updatePopulation();
                        }
                    } else if (msg.is_up()) {
                        m_isDrawing = false;
                    } else if (msg.is_move() && m_isDrawing) {
                        int gridX = (int)((msg.x - m_offsetX) / m_cellSize);
                        int gridY = (int)((msg.y - m_offsetY) / m_cellSize);
                        if (gridX >= 0 && gridX < GRID_WIDTH && gridY >= 0 && gridY < GRID_HEIGHT) {
                            setCell(gridX, gridY, m_drawValue);
                            updatePopulation();
                        }
                    }
                }

                if (msg.is_right()) {
                    if (msg.is_down()) {
                        m_isDragging = true;
                        m_lastMouseX = msg.x;
                        m_lastMouseY = msg.y;
                    } else if (msg.is_up()) {
                        m_isDragging = false;
                    } else if (msg.is_move() && m_isDragging) {
                        m_offsetX    += msg.x - m_lastMouseX;
                        m_offsetY    += msg.y - m_lastMouseY;
                        m_lastMouseX  = msg.x;
                        m_lastMouseY  = msg.y;
                    }
                }

                if (msg.is_wheel()) {
                    float oldCellSize  = m_cellSize;
                    float zoomFactor   = msg.wheel > 0 ? 1.2f : 0.8f;
                    m_cellSize        *= zoomFactor;
                    m_cellSize         = std::max(2.0f, std::min(30.0f, m_cellSize));

                    // Zoom towards mouse position
                    float mouseGridX = (msg.x - m_offsetX) / oldCellSize;
                    float mouseGridY = (msg.y - m_offsetY) / oldCellSize;
                    m_offsetX        = msg.x - mouseGridX * m_cellSize;
                    m_offsetY        = msg.y - mouseGridY * m_cellSize;
                }
            }
        }
    }

    void updatePopulation()
    {
        m_population = 0;
        for (int i = 0; i < GRID_WIDTH * GRID_HEIGHT; i++) {
            if (m_grid[i]) {
                m_population++;
            }
        }
    }

    void clear()
    {
        std::fill(m_grid.begin(), m_grid.end(), false);
        std::fill(m_trailGrid.begin(), m_trailGrid.end(), 0);
        std::fill(m_prevGrid.begin(), m_prevGrid.end(), false);
        m_generation = 0;
        m_population = 0;
    }

    void randomize()
    {
        clear();
        for (int y = 0; y < GRID_HEIGHT; y++) {
            for (int x = 0; x < GRID_WIDTH; x++) {
                if (rand() % 100 < 25) {
                    setCell(x, y, true);
                    m_population++;
                }
            }
        }
    }

    void loadPattern(int patternIndex)
    {
        clear();

        int centerX = GRID_WIDTH / 2;
        int centerY = GRID_HEIGHT / 2;

        // Pattern definitions (relative coordinates)
        std::vector<std::pair<int, int>> pattern;

        switch (patternIndex) {
        case 1: // Glider
            pattern = {{0, 0}, {1, 0}, {2, 0}, {2, -1}, {1, -2}};
            break;

        case 2: // Lightweight Spaceship (LWSS)
            pattern = {{0, 0}, {3, 0}, {4, 1}, {0, 2}, {4, 2}, {1, 3}, {2, 3}, {3, 3}, {4, 3}};
            break;

        case 3: // Pulsar
            pattern = {
                // Top left quadrant pattern (will be mirrored)
                {2, 0},
                {3, 0},
                {4, 0},
                {0, 2},
                {5, 2},
                {0, 3},
                {5, 3},
                {0, 4},
                {5, 4},
                {2, 5},
                {3, 5},
                {4, 5},
            };
            // Mirror the pattern
            {
                std::vector<std::pair<int, int>> fullPattern;
                for (auto& p : pattern) {
                    fullPattern.push_back({p.first, p.second});
                    fullPattern.push_back({-p.first - 1, p.second});
                    fullPattern.push_back({p.first, -p.second - 1});
                    fullPattern.push_back({-p.first - 1, -p.second - 1});
                }
                pattern = fullPattern;
            }
            break;

        case 4: // Gosper Glider Gun
            pattern = {{0, 4}, {0, 5}, {1, 4}, {1, 5}, {10, 4}, {10, 5}, {10, 6}, {11, 3}, {11, 7}, {12, 2}, {12, 8},
                {13, 2}, {13, 8}, {14, 5}, {15, 3}, {15, 7}, {16, 4}, {16, 5}, {16, 6}, {17, 5}, {20, 2}, {20, 3},
                {20, 4}, {21, 2}, {21, 3}, {21, 4}, {22, 1}, {22, 5}, {24, 0}, {24, 1}, {24, 5}, {24, 6}, {34, 2},
                {34, 3}, {35, 2}, {35, 3}};
            centerX = GRID_WIDTH / 4;
            centerY = GRID_HEIGHT / 2;
            break;

        case 5: // Pentadecathlon
            pattern = {
                {-4, 0}, {-3, 0}, {-2, -1}, {-2, 1}, {-1, 0}, {0, 0}, {1, 0}, {2, 0}, {3, -1}, {3, 1}, {4, 0}, {5, 0}};
            break;

        case 6: // Diehard
            pattern = {{0, 0}, {1, 0}, {1, 1}, {5, 1}, {6, -1}, {6, 1}, {7, 1}};
            break;

        case 7: // Acorn
            pattern = {{0, 0}, {1, -2}, {1, 0}, {3, -1}, {4, 0}, {5, 0}, {6, 0}};
            break;

        case 8: // Infinite growth (R-pentomino)
            pattern = {{0, 0}, {1, 0}, {0, 1}, {-1, 1}, {0, 2}};
            break;

        case 9: // Random
            randomize();
            return;
        }

        // Place pattern
        for (auto& p : pattern) {
            setCell(centerX + p.first, centerY + p.second, true);
        }

        updatePopulation();

        // Center view on pattern
        m_offsetX = (GRID_AREA_WIDTH - GRID_WIDTH * m_cellSize) / 2;
        m_offsetY = (WINDOW_HEIGHT - GRID_HEIGHT * m_cellSize) / 2;
    }

    std::vector<bool> m_grid;
    std::vector<bool> m_nextGrid;
    std::vector<bool> m_prevGrid;
    std::vector<int>  m_trailGrid;

    bool  m_paused;
    bool  m_showGrid;
    bool  m_showTrail;
    int   m_generation;
    int   m_population;
    int   m_speed;
    float m_cellSize;
    float m_offsetX;
    float m_offsetY;

    bool m_isDragging;
    bool m_isDrawing;
    bool m_drawValue;
    int  m_lastMouseX;
    int  m_lastMouseY;
    int  m_frameCount;
};

int main()
{
    srand((unsigned)time(NULL));
    setinitmode(INIT_ANIMATION);

    GameOfLife game;
    game.run();

    return 0;
}

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

177

178

179

180

181

182

183

184

185

186

187

188

189

190

191

192

193

194

195

196

197

198

199

200

201

202

203

204

205

206

207

208

209

210

211

212

213

214

215

216

217

218

219

220

221

222

223

224

225

226

227

228

229

230

231

232

233

234

235

236

237

238

239

240

241

242

243

244

245

246

247

248

249

250

251

252

253

254

255

256

257

258

259

260

261

262

263

264

265

266

267

268

269

270

271

272

273

274

275

276

277

278

279

280

281

282

283

284

285

286

287

288

289

290

291

292

293

294

295

296

297

298

299

300

301

302

303

304

305

306

307

308

309

310

311

312

313

314

315

316

317

318

319

320

321

322

323

324

325

326

327

328

329

330

331

332

333

334

335

336

337

338

339

340

341

342

343

344

345

346

347

348

349

350

351

352

353

354

355

356

357

358

359

360

361

362

363

364

365

366

367

368

369

370

371

372

373

374

375

376

377

378

379

380

381

382

383

384

385

386

387

388

389

390

391

392

393

394

395

396

397

398

399

400

401

402

403

404

405

406

407

408

409

410

411

412

413

414

415

416

417

418

419

420

421

422

423

424

425

426

427

428

429

430

431

432

433

434

435

436

437

438

439

440

441

442

443

444

445

446

447

448

449

450

451

452

453

454

455

456

457

458

459

460

461

462

463

464

465

466

467

468

469

470

471

472

473

474

475

476

477

478

479

480

481

482

483

484

485

486

487

488

489

490

491

492

493

494

495

496

497

498

499

500

501

502

503

504

505

506

507

508

509

510

511

512

513

514

515

516

517

518

519

520

521

522

523

524

525

526

527

528

529

530

531

532

533

534

535

536

537

538

539

540

541

542

543

544

545

546

547

548

549

550

551

552

553

554

555

556

557

558

559

560

561

562

563

564

565

566

567

568

569

570

571

572

573

574

575

576

577

578

579

580

581

582

583

584

585

586

587

588

589

590

591

592

593

594

595

596

597

598

599

600

601

602

603

604

605

606

607

608

609

610

611

612

613

614

615

616

617

618

619

620

621

622

623

624

625

626

627

628

629

630

631

632

633

634

635

636

637

638

639

640

641

642

643

644

645

646

647

648

649

650

651

652

653

654

655

656

657

658

659

660

661

662

663

664

665

666

667

668

669

670

671

672

673

674

675

676

677

678

679

680

681

682

683

684

685

686

687

688

689

690

691

692

693

694

695

696

697

698

699

700

701

702

703

704

705

706

707

708

709

710

711

712

713

714

715

716

717

718

719

720

721

722

723

724

725

726

727

728

729

730

731

732

733

734

735

736

737

738

739

740

741

742

743

744

745

746

747

748

749

/**

* @file graph_game_of_life.cpp

* @brief Conway's Game of Life Visualization Demo

* 康威生命游戏可视化演示

* - 经典的元胞自动机模拟

* - 简单规则产生复杂涌现行为

* - 支持鼠标绘制初始状态

* - 内置多种经典图案

* Controls / 控制:

* Space - Pause/Resume 暂停/继续

* R - Random reset 随机重置

* C - Clear grid 清空网格

* G - Toggle grid lines 开关网格线

* T - Toggle trail effect 开关轨迹效果

* +/- - Speed up/down 加速/减速

* 1-9 - Load preset patterns 加载预设图案

* Mouse Left - Draw/Erase cells 绘制/擦除细胞

* Mouse Right - Pan view 平移视图

* Mouse Wheel - Zoom in/out 缩放

* ESC - Exit 退出

* Rules / 规则:

* 1. 任何活细胞周围少于2个活邻居则死亡（孤独）

* 2. 任何活细胞周围有2-3个活邻居则存活

* 3. 任何活细胞周围超过3个活邻居则死亡（拥挤）

* 4. 任何死细胞周围恰好3个活邻居则复活（繁殖）

// 禁用 Windows.h 中的 min/max 宏，避免与 std::min/std::max 冲突

#ifndef NOMINMAX

#define NOMINMAX

#endif

#include <graphics.h>

#include <cmath>

#include <cstdlib>

#include <ctime>

#include <vector>

#include <string>

#include <algorithm>

#ifdef _MSC_VER

#define DEMO_TITLE "康威生命游戏"

#define STR_PAUSED "已暂停"

#define STR_RUNNING "运行中"

#define STR_GENERATION "代数: %d"

#define STR_POPULATION "存活: %d"

#define STR_SPEED "速度: %d 代/秒"

#define STR_ZOOM "缩放: %.1fx"

#define STR_GRID "网格: %s"

#define STR_TRAIL "轨迹: %s"

#define STR_ON "开"

#define STR_OFF "关"

#define STR_CONTROLS "控制说明"

#define STR_SPACE "空格 - 暂停/继续"

#define STR_KEY_R "R - 随机重置"

#define STR_KEY_C "C - 清空网格"

#define STR_KEY_G "G - 开关网格"

#define STR_KEY_T "T - 开关轨迹"

#define STR_PLUS_MINUS "+/- - 调整速度"

#define STR_MOUSE_L "左键 - 绘制细胞"

#define STR_MOUSE_R "右键 - 平移视图"

#define STR_WHEEL "滚轮 - 缩放"

#define STR_NUM_KEYS "1-9 - 预设图案"

#define STR_ESC "ESC - 退出"

#define STR_PATTERNS "预设图案"

#define STR_PAT_GLIDER "1 - 滑翔机"

#define STR_PAT_LWSS "2 - 轻型飞船"

#define STR_PAT_PULSAR "3 - 脉冲星"

#define STR_PAT_GOSPER "4 - 高斯帕枪"

#define STR_PAT_PENTA "5 - 五联体"

#define STR_PAT_DIEHARD "6 - 顽固"

#define STR_PAT_ACORN "7 - 橡子"

#define STR_PAT_INF "8 - 无限增长"

#define STR_PAT_RANDOM "9 - 随机"

#else

#define DEMO_TITLE "Conway's Game of Life"

#define STR_PAUSED "Paused"

#define STR_RUNNING "Running"

#define STR_GENERATION "Gen: %d"

#define STR_POPULATION "Pop: %d"

#define STR_SPEED "Speed: %d gen/s"

#define STR_ZOOM "Zoom: %.1fx"

#define STR_GRID "Grid: %s"

#define STR_TRAIL "Trail: %s"

#define STR_ON "On"

#define STR_OFF "Off"

#define STR_CONTROLS "Controls"

#define STR_SPACE "Space - Pause/Resume"

#define STR_KEY_R "R - Random Reset"

#define STR_KEY_C "C - Clear Grid"

#define STR_KEY_G "G - Toggle Grid"

#define STR_KEY_T "T - Toggle Trail"

#define STR_PLUS_MINUS "+/- - Adjust Speed"

#define STR_MOUSE_L "LMB - Draw Cells"

#define STR_MOUSE_R "RMB - Pan View"

#define STR_WHEEL "Wheel - Zoom"

#define STR_NUM_KEYS "1-9 - Preset Patterns"

#define STR_ESC "ESC - Exit"

#define STR_PATTERNS "Patterns"

#define STR_PAT_GLIDER "1 - Glider"

#define STR_PAT_LWSS "2 - LWSS"

#define STR_PAT_PULSAR "3 - Pulsar"

#define STR_PAT_GOSPER "4 - Gosper Gun"

#define STR_PAT_PENTA "5 - Pentadecathlon"

#define STR_PAT_DIEHARD "6 - Diehard"

#define STR_PAT_ACORN "7 - Acorn"

#define STR_PAT_INF "8 - Infinite Growth"

#define STR_PAT_RANDOM "9 - Random"

#endif

using namespace ege;

// Window dimensions

const int WINDOW_WIDTH = 1280;

const int WINDOW_HEIGHT = 800;

const int PANEL_WIDTH = 200;

const int GRID_AREA_WIDTH = WINDOW_WIDTH - PANEL_WIDTH;

// Colors

const color_t LIFE_COLOR_BG = EGERGB(20, 20, 30);

const color_t LIFE_COLOR_PANEL = EGERGB(40, 40, 50);

const color_t LIFE_COLOR_TEXT = EGERGB(220, 220, 220);

const color_t LIFE_COLOR_TITLE = EGERGB(100, 200, 255);

const color_t LIFE_COLOR_GRID = EGERGB(50, 50, 60);

const color_t LIFE_COLOR_CELL_ALIVE = EGERGB(50, 255, 100);

const color_t LIFE_COLOR_CELL_BORN = EGERGB(100, 255, 150);

const color_t LIFE_COLOR_CELL_DYING = EGERGB(150, 100, 50);

const color_t LIFE_COLOR_TRAIL = EGERGB(30, 60, 40);

// Grid settings

const int GRID_WIDTH = 200;

const int GRID_HEIGHT = 150;

class GameOfLife

{

public:

GameOfLife() :

m_paused(true),

m_showGrid(true),

m_showTrail(false),

m_generation(0),

m_population(0),

m_speed(10),

m_cellSize(6.0f),

m_offsetX(0.0f),

m_offsetY(0.0f),

m_isDragging(false),

m_isDrawing(false),

m_drawValue(true),

m_lastMouseX(0),

m_lastMouseY(0),

m_frameCount(0)

{

m_grid.resize(GRID_WIDTH * GRID_HEIGHT, false);

m_nextGrid.resize(GRID_WIDTH * GRID_HEIGHT, false);

m_trailGrid.resize(GRID_WIDTH * GRID_HEIGHT, 0);

m_prevGrid.resize(GRID_WIDTH * GRID_HEIGHT, false);

// Center the view

m_offsetX = (GRID_AREA_WIDTH - GRID_WIDTH * m_cellSize) / 2;

m_offsetY = (WINDOW_HEIGHT - GRID_HEIGHT * m_cellSize) / 2;

// Load default pattern (Gosper Glider Gun)

loadPattern(4);

}

void run()

{

initgraph(WINDOW_WIDTH, WINDOW_HEIGHT);

setbkmode(TRANSPARENT);

setcaption(DEMO_TITLE);

setbkcolor(LIFE_COLOR_BG);

while (is_run()) {

handleInput();

if (!m_paused) {

m_frameCount++;

int updateInterval = 60 / m_speed;

if (updateInterval < 1) {

updateInterval = 1;

}

if (m_frameCount >= updateInterval) {

update();

m_frameCount = 0;

}

render();

delay_fps(60);

}

closegraph();

}

private:

// Grid access helpers

bool getCell(int x, int y) const

{

if (x < 0 || x >= GRID_WIDTH || y < 0 || y >= GRID_HEIGHT) {

return false;

}

return m_grid[y * GRID_WIDTH + x];

}

void setCell(int x, int y, bool alive)

{

if (x >= 0 && x < GRID_WIDTH && y >= 0 && y < GRID_HEIGHT) {

m_grid[y * GRID_WIDTH + x] = alive;

}

int countNeighbors(int x, int y) const

{

int count = 0;

for (int dy = -1; dy <= 1; dy++) {

for (int dx = -1; dx <= 1; dx++) {

if (dx == 0 && dy == 0) {

continue;

}

if (getCell(x + dx, y + dy)) {

count++;

}

return count;

}

void update()

{

// Save previous state for visual effects

m_prevGrid = m_grid;

m_population = 0;

for (int y = 0; y < GRID_HEIGHT; y++) {

for (int x = 0; x < GRID_WIDTH; x++) {

int neighbors = countNeighbors(x, y);

bool alive = getCell(x, y);

bool nextState = false;

if (alive) {

// Rule 1 & 3: Die if < 2 or > 3 neighbors

// Rule 2: Survive if 2 or 3 neighbors

nextState = (neighbors == 2 || neighbors == 3);

} else {

// Rule 4: Birth if exactly 3 neighbors

nextState = (neighbors == 3);

}

m_nextGrid[y * GRID_WIDTH + x] = nextState;

if (nextState) {

m_population++;

}

// Update trail

if (m_showTrail) {

if (alive) {

m_trailGrid[y * GRID_WIDTH + x] = 255;

} else if (m_trailGrid[y * GRID_WIDTH + x] > 0) {

m_trailGrid[y * GRID_WIDTH + x] = std::max(0, m_trailGrid[y * GRID_WIDTH + x] - 15);

}

std::swap(m_grid, m_nextGrid);

m_generation++;

}

void render()

{

cleardevice();

// Draw trail effect

if (m_showTrail) {

for (int y = 0; y < GRID_HEIGHT; y++) {

for (int x = 0; x < GRID_WIDTH; x++) {

int trail = m_trailGrid[y * GRID_WIDTH + x];

if (trail > 0 && !m_grid[y * GRID_WIDTH + x]) {

float screenX = m_offsetX + x * m_cellSize;

float screenY = m_offsetY + y * m_cellSize;

if (screenX + m_cellSize >= 0 && screenX < GRID_AREA_WIDTH && screenY + m_cellSize >= 0 &&

screenY < WINDOW_HEIGHT)

{

int r = 30 * trail / 255;

int g = 60 * trail / 255;

int b = 40 * trail / 255;

setfillcolor(EGERGB(r, g, b));

bar((int)screenX, (int)screenY, (int)(screenX + m_cellSize - 1),

(int)(screenY + m_cellSize - 1));

}

// Draw grid lines

if (m_showGrid && m_cellSize >= 4) {

setcolor(LIFE_COLOR_GRID);

for (int x = 0; x <= GRID_WIDTH; x++) {

float screenX = m_offsetX + x * m_cellSize;

if (screenX >= 0 && screenX < GRID_AREA_WIDTH) {

line((int)screenX, 0, (int)screenX, WINDOW_HEIGHT);

}

for (int y = 0; y <= GRID_HEIGHT; y++) {

float screenY = m_offsetY + y * m_cellSize;

if (screenY >= 0 && screenY < WINDOW_HEIGHT) {

line(0, (int)screenY, GRID_AREA_WIDTH, (int)screenY);

}

// Draw cells

for (int y = 0; y < GRID_HEIGHT; y++) {

for (int x = 0; x < GRID_WIDTH; x++) {

bool alive = m_grid[y * GRID_WIDTH + x];

bool wasAlive = m_prevGrid[y * GRID_WIDTH + x];

if (alive || (wasAlive && !alive && !m_paused)) {

float screenX = m_offsetX + x * m_cellSize;

float screenY = m_offsetY + y * m_cellSize;

// Culling

if (screenX + m_cellSize < 0 || screenX > GRID_AREA_WIDTH || screenY + m_cellSize < 0 ||

screenY > WINDOW_HEIGHT)

{

continue;

}

color_t cellColor;

if (alive && !wasAlive) {

// Just born

cellColor = LIFE_COLOR_CELL_BORN;

} else if (!alive && wasAlive) {

// Just died

cellColor = LIFE_COLOR_CELL_DYING;

} else {

// Alive

cellColor = LIFE_COLOR_CELL_ALIVE;

}

setfillcolor(cellColor);

float margin = m_cellSize >= 6 ? 1.0f : 0.0f;

bar((int)(screenX + margin), (int)(screenY + margin), (int)(screenX + m_cellSize - margin - 1),

(int)(screenY + m_cellSize - margin - 1));

}

// Draw panel

drawPanel();

}

void drawPanel()

{

// Panel background

setfillcolor(LIFE_COLOR_PANEL);

bar(GRID_AREA_WIDTH, 0, WINDOW_WIDTH, WINDOW_HEIGHT);

// Border

setcolor(EGERGB(80, 80, 90));

line(GRID_AREA_WIDTH, 0, GRID_AREA_WIDTH, WINDOW_HEIGHT);

int x = GRID_AREA_WIDTH + 15;

int y = 20;

char buf[64];

// Title

setfont(24, 0, "Consolas");

setcolor(LIFE_COLOR_TITLE);

outtextxy(x, y, DEMO_TITLE);

y += 40;

// Status

setfont(16, 0, "Consolas");

setcolor(m_paused ? EGERGB(255, 150, 100) : EGERGB(100, 255, 150));

outtextxy(x, y, m_paused ? STR_PAUSED : STR_RUNNING);

y += 30;

// Stats

setcolor(LIFE_COLOR_TEXT);

sprintf(buf, STR_GENERATION, m_generation);

outtextxy(x, y, buf);

y += 22;

sprintf(buf, STR_POPULATION, m_population);

outtextxy(x, y, buf);

y += 22;

sprintf(buf, STR_SPEED, m_speed);

outtextxy(x, y, buf);

y += 22;

sprintf(buf, STR_ZOOM, m_cellSize / 6.0f);

outtextxy(x, y, buf);

y += 22;

sprintf(buf, STR_GRID, m_showGrid ? STR_ON : STR_OFF);

outtextxy(x, y, buf);

y += 22;

sprintf(buf, STR_TRAIL, m_showTrail ? STR_ON : STR_OFF);

outtextxy(x, y, buf);

y += 40;

// Controls

setcolor(LIFE_COLOR_TITLE);

outtextxy(x, y, STR_CONTROLS);

y += 25;

setfont(14, 0, "Consolas");

setcolor(EGERGB(180, 180, 180));

outtextxy(x, y, STR_SPACE);

y += 18;

outtextxy(x, y, STR_KEY_R);

y += 18;

outtextxy(x, y, STR_KEY_C);

y += 18;

outtextxy(x, y, STR_KEY_G);

y += 18;

outtextxy(x, y, STR_KEY_T);

y += 18;

outtextxy(x, y, STR_PLUS_MINUS);

y += 18;

outtextxy(x, y, STR_MOUSE_L);

y += 18;

outtextxy(x, y, STR_MOUSE_R);

y += 18;

outtextxy(x, y, STR_WHEEL);

y += 18;

outtextxy(x, y, STR_NUM_KEYS);

y += 18;

outtextxy(x, y, STR_ESC);

y += 35;

// Patterns

setfont(16, 0, "Consolas");

setcolor(LIFE_COLOR_TITLE);

outtextxy(x, y, STR_PATTERNS);

y += 25;

setfont(14, 0, "Consolas");

setcolor(EGERGB(180, 180, 180));

outtextxy(x, y, STR_PAT_GLIDER);

y += 18;

outtextxy(x, y, STR_PAT_LWSS);

y += 18;

outtextxy(x, y, STR_PAT_PULSAR);

y += 18;

outtextxy(x, y, STR_PAT_GOSPER);

y += 18;

outtextxy(x, y, STR_PAT_PENTA);

y += 18;

outtextxy(x, y, STR_PAT_DIEHARD);

y += 18;

outtextxy(x, y, STR_PAT_ACORN);

y += 18;

outtextxy(x, y, STR_PAT_INF);

y += 18;

outtextxy(x, y, STR_PAT_RANDOM);

}

void handleInput()

{

// Keyboard input

while (kbhit()) {

int key = getch();

switch (key) {

case ' ':

m_paused = !m_paused;

break;

case 'r':

case 'R':

randomize();

break;

case 'c':

case 'C':

clear();

break;

case 'g':

case 'G':

m_showGrid = !m_showGrid;

break;

case 't':

case 'T':

m_showTrail = !m_showTrail;

if (!m_showTrail) {

std::fill(m_trailGrid.begin(), m_trailGrid.end(), 0);

}

break;

case '+':

case '=':

m_speed = std::min(60, m_speed + 5);

break;

case '-':

case '_':

m_speed = std::max(1, m_speed - 5);

break;

case '1':

case '2':

case '3':

case '4':

case '5':

case '6':

case '7':

case '8':

case '9':

loadPattern(key - '0');

break;

case key_esc:

closegraph();

exit(0);

break;

}

// Mouse input

while (mousemsg()) {

mouse_msg msg = getmouse();

if (msg.x < GRID_AREA_WIDTH) {

if (msg.is_left()) {

if (msg.is_down()) {

m_isDrawing = true;

int gridX = (int)((msg.x - m_offsetX) / m_cellSize);

int gridY = (int)((msg.y - m_offsetY) / m_cellSize);

if (gridX >= 0 && gridX < GRID_WIDTH && gridY >= 0 && gridY < GRID_HEIGHT) {

m_drawValue = !getCell(gridX, gridY);

setCell(gridX, gridY, m_drawValue);

updatePopulation();

}

} else if (msg.is_up()) {

m_isDrawing = false;

} else if (msg.is_move() && m_isDrawing) {

int gridX = (int)((msg.x - m_offsetX) / m_cellSize);

int gridY = (int)((msg.y - m_offsetY) / m_cellSize);

if (gridX >= 0 && gridX < GRID_WIDTH && gridY >= 0 && gridY < GRID_HEIGHT) {

setCell(gridX, gridY, m_drawValue);

updatePopulation();

}

if (msg.is_right()) {

if (msg.is_down()) {

m_isDragging = true;

m_lastMouseX = msg.x;

m_lastMouseY = msg.y;

} else if (msg.is_up()) {

m_isDragging = false;

} else if (msg.is_move() && m_isDragging) {

m_offsetX += msg.x - m_lastMouseX;

m_offsetY += msg.y - m_lastMouseY;

m_lastMouseX = msg.x;

m_lastMouseY = msg.y;

}

if (msg.is_wheel()) {

float oldCellSize = m_cellSize;

float zoomFactor = msg.wheel > 0 ? 1.2f : 0.8f;

m_cellSize *= zoomFactor;

m_cellSize = std::max(2.0f, std::min(30.0f, m_cellSize));

// Zoom towards mouse position

float mouseGridX = (msg.x - m_offsetX) / oldCellSize;

float mouseGridY = (msg.y - m_offsetY) / oldCellSize;

m_offsetX = msg.x - mouseGridX * m_cellSize;

m_offsetY = msg.y - mouseGridY * m_cellSize;

}

void updatePopulation()

{

m_population = 0;

for (int i = 0; i < GRID_WIDTH * GRID_HEIGHT; i++) {

if (m_grid[i]) {

m_population++;

}

void clear()

{

std::fill(m_grid.begin(), m_grid.end(), false);

std::fill(m_trailGrid.begin(), m_trailGrid.end(), 0);

std::fill(m_prevGrid.begin(), m_prevGrid.end(), false);

m_generation = 0;

m_population = 0;

}

void randomize()

{

clear();

for (int y = 0; y < GRID_HEIGHT; y++) {

for (int x = 0; x < GRID_WIDTH; x++) {

if (rand() % 100 < 25) {

setCell(x, y, true);

m_population++;

}

void loadPattern(int patternIndex)

{

clear();

int centerX = GRID_WIDTH / 2;

int centerY = GRID_HEIGHT / 2;

// Pattern definitions (relative coordinates)

std::vector<std::pair<int, int>> pattern;

switch (patternIndex) {

case 1: // Glider

pattern = {{0, 0}, {1, 0}, {2, 0}, {2, -1}, {1, -2}};

break;

case 2: // Lightweight Spaceship (LWSS)

pattern = {{0, 0}, {3, 0}, {4, 1}, {0, 2}, {4, 2}, {1, 3}, {2, 3}, {3, 3}, {4, 3}};

break;

case 3: // Pulsar

pattern = {

// Top left quadrant pattern (will be mirrored)

{2, 0},

{3, 0},

{4, 0},

{0, 2},

{5, 2},

{0, 3},

{5, 3},

{0, 4},

{5, 4},

{2, 5},

{3, 5},

{4, 5},

};

// Mirror the pattern

{

std::vector<std::pair<int, int>> fullPattern;

for (auto& p : pattern) {

fullPattern.push_back({p.first, p.second});

fullPattern.push_back({-p.first - 1, p.second});

fullPattern.push_back({p.first, -p.second - 1});

fullPattern.push_back({-p.first - 1, -p.second - 1});

}

pattern = fullPattern;

}

break;

case 4: // Gosper Glider Gun

pattern = {{0, 4}, {0, 5}, {1, 4}, {1, 5}, {10, 4}, {10, 5}, {10, 6}, {11, 3}, {11, 7}, {12, 2}, {12, 8},

{13, 2}, {13, 8}, {14, 5}, {15, 3}, {15, 7}, {16, 4}, {16, 5}, {16, 6}, {17, 5}, {20, 2}, {20, 3},

{20, 4}, {21, 2}, {21, 3}, {21, 4}, {22, 1}, {22, 5}, {24, 0}, {24, 1}, {24, 5}, {24, 6}, {34, 2},

{34, 3}, {35, 2}, {35, 3}};

centerX = GRID_WIDTH / 4;

centerY = GRID_HEIGHT / 2;

break;

case 5: // Pentadecathlon

pattern = {

{-4, 0}, {-3, 0}, {-2, -1}, {-2, 1}, {-1, 0}, {0, 0}, {1, 0}, {2, 0}, {3, -1}, {3, 1}, {4, 0}, {5, 0}};

break;

case 6: // Diehard

pattern = {{0, 0}, {1, 0}, {1, 1}, {5, 1}, {6, -1}, {6, 1}, {7, 1}};

break;

case 7: // Acorn

pattern = {{0, 0}, {1, -2}, {1, 0}, {3, -1}, {4, 0}, {5, 0}, {6, 0}};

break;

case 8: // Infinite growth (R-pentomino)

pattern = {{0, 0}, {1, 0}, {0, 1}, {-1, 1}, {0, 2}};

break;

case 9: // Random

randomize();

return;

}

// Place pattern

for (auto& p : pattern) {

setCell(centerX + p.first, centerY + p.second, true);

}

updatePopulation();

// Center view on pattern

m_offsetX = (GRID_AREA_WIDTH - GRID_WIDTH * m_cellSize) / 2;

m_offsetY = (WINDOW_HEIGHT - GRID_HEIGHT * m_cellSize) / 2;

}

std::vector<bool> m_grid;

std::vector<bool> m_nextGrid;

std::vector<bool> m_prevGrid;

std::vector<int> m_trailGrid;

bool m_paused;

bool m_showGrid;

bool m_showTrail;

int m_generation;

int m_population;

int m_speed;

float m_cellSize;

float m_offsetX;

float m_offsetY;

bool m_isDragging;

bool m_isDrawing;

bool m_drawValue;

int m_lastMouseX;

int m_lastMouseY;

int m_frameCount;

};

int main()

{

srand((unsigned)time(NULL));

setinitmode(INIT_ANIMATION);

GameOfLife game;

game.run();

return 0;

}

文章分类范例标签： demo, 新手教程, 游戏, 算法

EGE 康威生命游戏

生命游戏规则

项目特性

核心算法实现

邻居计数

状态更新

规则简化表达

经典图案

1. 滑翔机（Glider）

2. 轻型飞船（LWSS）

3. 脉冲星（Pulsar）

4. 高斯帕滑翔机枪（Gosper Glider Gun）

5. R-五格体（R-pentomino）

6. 橡子（Acorn）

视觉效果实现

轨迹效果

细胞状态颜色

交互功能实现

鼠标绘制

视图平移

缩放功能

性能优化

1. 视锥剔除（Frustum Culling）

2. 帧率控制

3. 一维数组存储

EGE 图形库应用

网格绘制

信息面板

操作指南

数学与哲学意义

完整代码

归档

近期评论

近期文章

近期评论

归档

分类

2025 年 12 月
一	二	三	四	五	六	日
1	2	3	4	5	6	7
8	9	10	11	12	13	14
15	16	17	18	19	20	21
22	23	24	25	26	27	28
29	30	31
